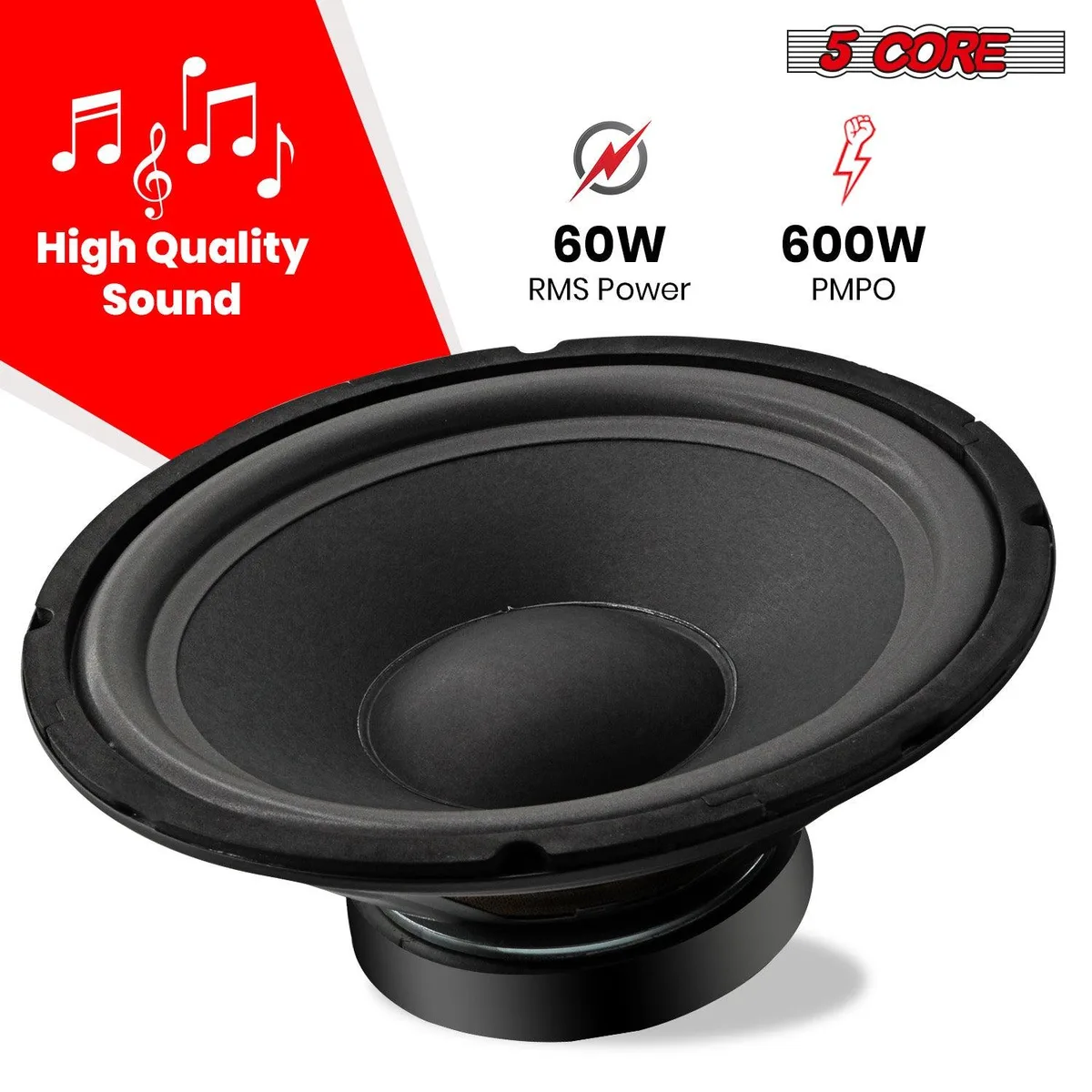

Black 10 inch subwoofer with steel frame rubber edge paper cone

5 Core

5 Core 10 inch Subwoofer 600W Peak 8 Ohm

SKU CH-X232-AYH5C

A 10-inch subwoofer with 600W peak power, 60W RMS, 8-ohm impedance, dual voice coils, 30 Oz Y30 magnet, 86 dB sensitivity, 40-4K Hz range, rubber-edge cone, steel frame and 104 mm mounting depth

  • TypeSubwoofer
  • Deep, responsive bass from a rubber-edge paper cone
  • Consistent output with 60 W RMS and 600 W peak power

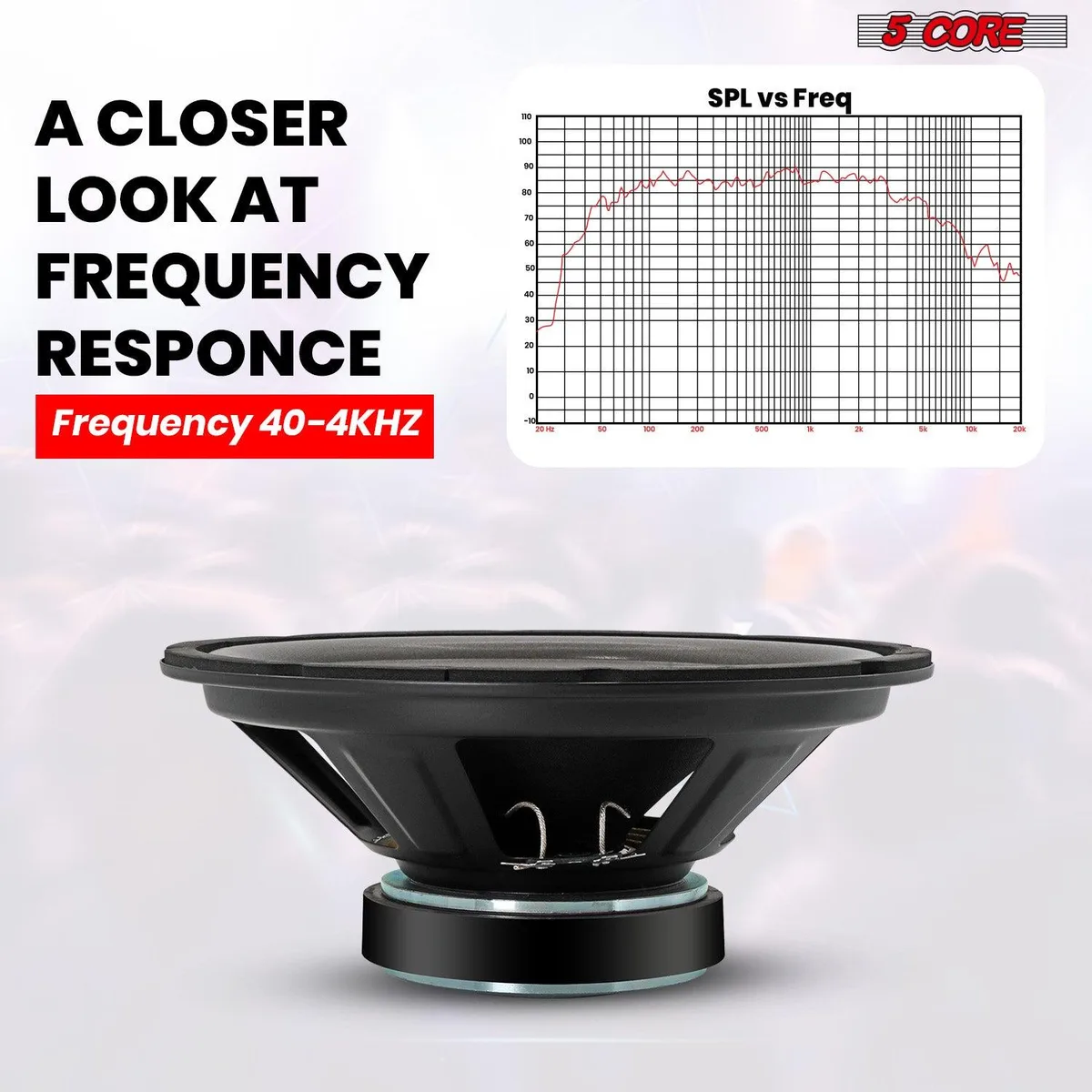

  • Wide 40 Hz – 4 kHz range covers lows to mid-bass
  • 8 Ω impedance fits PA, DJ and home speaker systems
  • 30 oz Y30 magnet and 2″ CCAW voice coil handle heat for lasting performance

10 inch subwoofer for PA and DJ systems

The 10 inch subwoofer delivers 600W peak power and 60W RMS output for deep bass reinforcement. An 86 dB sensitivity rating produces strong volume with modest amplifier power. The 8 Ohm impedance matches a wide range of PA, DJ and home speaker systems. It covers a 40-4K Hz frequency range from deep lows to clear mid-bass.

8 Ohm impedance and power handling limits

The 8 Ohm nominal impedance ensures compatibility with many amplifiers but restricts maximum current draw compared to lower impedance models. Peak power of 600W handles short bursts while 60W RMS defines continuous thermal limits. The 2 inch CCAW voice coil manages heat during extended high-output sessions. Sensitivity of 86 dB means higher amplifier gain is needed for very loud levels.

Standard 10 inch frame with 104mm mounting depth

The steel basket fits standard 10 inch cutouts and requires 104mm clearance behind the mounting plane. Rubber edge paper cone allows free excursion without mechanical binding. Dual voice coil design adds wiring flexibility but demands correct phasing to avoid cancellation. Installers must verify cabinet volume and port tuning suit the driver parameters.

Highlights

  • Deep, responsive bass from a rubber-edge paper cone
  • Consistent output with 60 W RMS and 600 W peak power
  • Wide 40 Hz – 4 kHz range covers lows to mid-bass
  • 8 Ω impedance fits PA, DJ and home speaker systems
  • 30 oz Y30 magnet and 2″ CCAW voice coil handle heat for lasting performance

Specifications

TypeSubwoofer

Questions about this item

Which power figure should I use to match this 10 inch subwoofer to my amplifier?

Match the amplifier to the 60W RMS rating; the 600W peak value only represents short bursts and will overheat the voice coil if used continuously.

What does the 86 dB sensitivity mean when the subwoofer is installed in a cabinet?

At 86 dB sensitivity the driver produces moderate output per watt, so you will need an amplifier that can deliver clean power near the 60W RMS level to reach loud listening volumes.

What does the 8 Ohm impedance limit when connecting this woofer to a PA or DJ system?

The 8 Ohm load caps the maximum current draw, so most PA amplifiers will deliver their rated 8 Ohm power cleanly without risking thermal shutdown.
