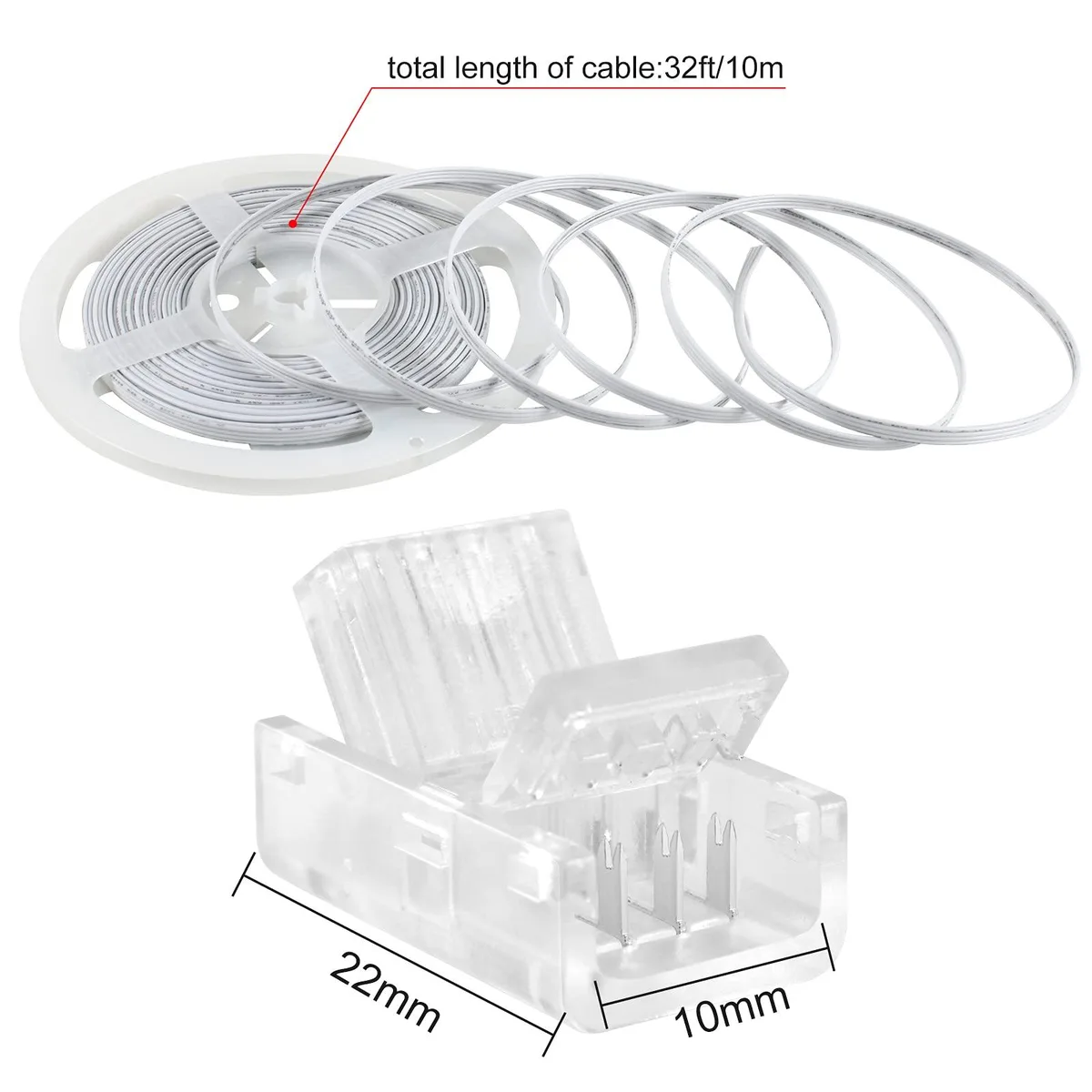

Ten clear plastic connectors and a long grey cable on a white background

4 Pin 10mm LED Strip Connectors 32.8ft Extension Cable industrial wire

SKU CH-WJ9F-418DJ

Connects 10mm RGB 5050 LED strips to power or controllers with 10 solderless 4-pin connectors, 32.8ft of 22 AWG extension cable and a screwdriver

  • Standards/CertificationsPolyvinyl Chloride, 10Pcs 4pin led connectors and 1 bundle 3
  • Connect 10mm RGB strips without soldering using 10 reusable 4-pin connectors
  • 8 ft 22 AWG extension cable with copper cores and PVC insulation
  • Rated for 0-36 V and up to 2 A on LED strips
  • Compatible with IP20 and IP65 SMD 5050 strips at 5 V, 12 V or 24 V
  • Includes screwdriver for quick clamp opening and repeated DIY configurations

LED strip connector kit for 10 mm RGB runs

This kit supplies ten 4-pin connectors and a 32.8 ft roll of 22 AWG extension cable for 10 mm wide SMD 5050 RGB strips. It suits installers who need quick, solder-free joints on IP20 or IP65 tape running at 5 V, 12 V or 24 V. A small screwdriver is included for opening the connector clamps.

PVC-jacketed copper cable with tool-free clamps

The extension wire uses multi-strand copper cores inside a PVC sheath rated to 300 V and 80 °C. Connectors are moulded from transparent PC housing with copper contacts rated to 36 V and 5 A; the clamps pierce both strip pads and wire insulation without stripping. Operating temperature range is -10 °C to 45 °C.

Replaces soldering and single-use plug kits

This set removes the need for a soldering iron, heat-shrink and one-time snap connectors on 10 mm RGB tape. It is not suitable for 8 mm or 5 mm strips, nor for IP67 silicone-encased tape. The jump is worth it when a project demands reusable, reconfigurable links across long runs.

Highlights

  • Connect 10mm RGB strips without soldering using 10 reusable 4-pin connectors
  • 8 ft 22 AWG extension cable with copper cores and PVC insulation
  • Rated for 0-36 V and up to 2 A on LED strips
  • Compatible with IP20 and IP65 SMD 5050 strips at 5 V, 12 V or 24 V
  • Includes screwdriver for quick clamp opening and repeated DIY configurations

Specifications

Standards/CertificationsPolyvinyl Chloride, 10Pcs 4pin led connectors and 1 bundle 32.8ft(10M) 4pin extension wire

Questions about this item

What voltage does the 4-pin interface support on the LED strip side?

The connectors are rated for 0-36 V, matching 5 V, 12 V and 24 V SMD RGB 5050 strips.

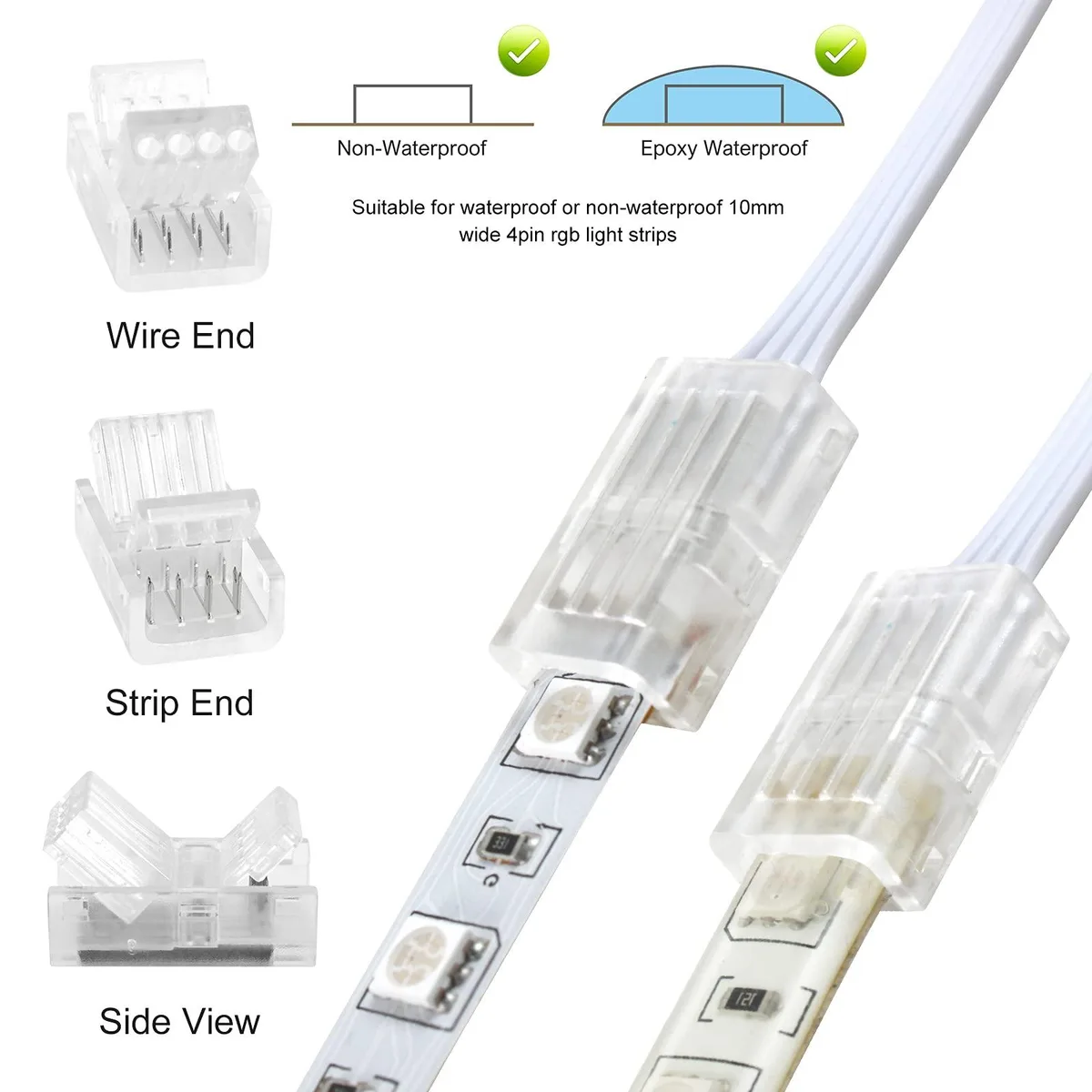

What strip width and IP ratings do the connectors fit?

They fit 10 mm wide strips rated IP20 or IP65; IP67 strips are not compatible.

How do you secure the strip and wire without soldering, and what step is often missed?

Open the clamp fully, push the strip in until it touches the backing so the pins pierce the copper pads, then press the wire end firmly; many forget to ensure the strip contacts the copper sheet before closing.
