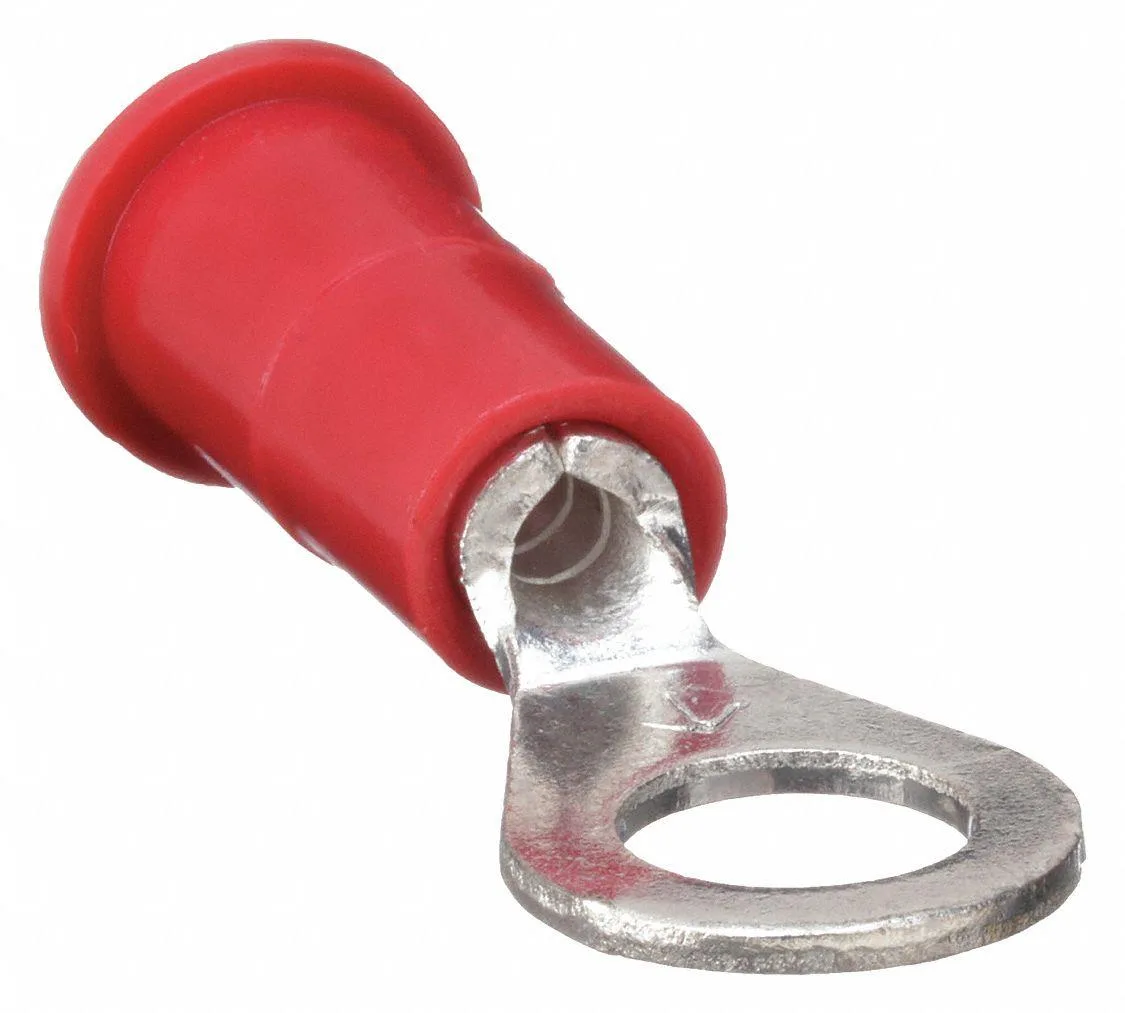

Red vinyl-insulated ring terminal, #6 stud, 18 AWG, 100 pack

3M

3M MVU18-6R/SX Ring Terminal #6 Stud 18 AWG 600 V Vinyl

SKU CH-7WEG-PKQFB

Red vinyl-insulated ring terminals accept 18 to 22 AWG wire, crimp onto a #6 stud, and are rated for 600 V at 221 °F

  • TypeElectrical Connectors
  • CSA certified and UL listed for code compliance
  • Crimps 18 AWG to 22 AWG wire securely
  • Vinyl insulation rated to 221 °F
  • #6 stud ring tongue .25 in wide
  • 100 terminals per pack for volume jobs

18 AWG Ring Terminal for #6 Stud

This vinyl-insulated ring terminal accepts wire from 22 AWG up to 18 AWG and is rated for 600 V. The copper contact and crimp termination suit low-voltage automotive and industrial wiring jobs. Each pack contains 100 terminals for volume installation work.

Verify wire gauge and stud size before ordering

Confirm that your conductors fall between the minimum 22 AWG and maximum 18 AWG range. The tongue is sized for a #6 stud and measures .25 in wide, so the mounting hole must match that diameter. The terminal is rated to 221 Degrees F, so ensure the operating environment stays within that limit.

Copper contact with vinyl insulation and certified

The copper tongue provides reliable conductivity while the red vinyl sleeve insulates the crimp joint. CSA certification and UL listing confirm compliance with recognised safety standards. Overall length is .8 in, allowing compact routing in tight panels or harnesses.

Highlights

  • CSA certified and UL listed for code compliance
  • Crimps 18 AWG to 22 AWG wire securely
  • Vinyl insulation rated to 221 °F
  • #6 stud ring tongue .25 in wide
  • 100 terminals per pack for volume jobs

Specifications

Brand3M
TypeElectrical Connectors

Questions about this item

What comes in the package and is a crimp tool included?

The pack contains 100 ring terminals. A crimp tool is not included and must be purchased separately.

Which wire gauge should I select for the MVU18-6R/SX terminal?

This terminal accepts wires from 22 AWG up to 18 AWG, so choose 18 AWG wire for the maximum cross-section.

What does the 600 V rating mean when the terminal is installed?

It indicates the maximum voltage the insulation can withstand in service, up to 600 V.
