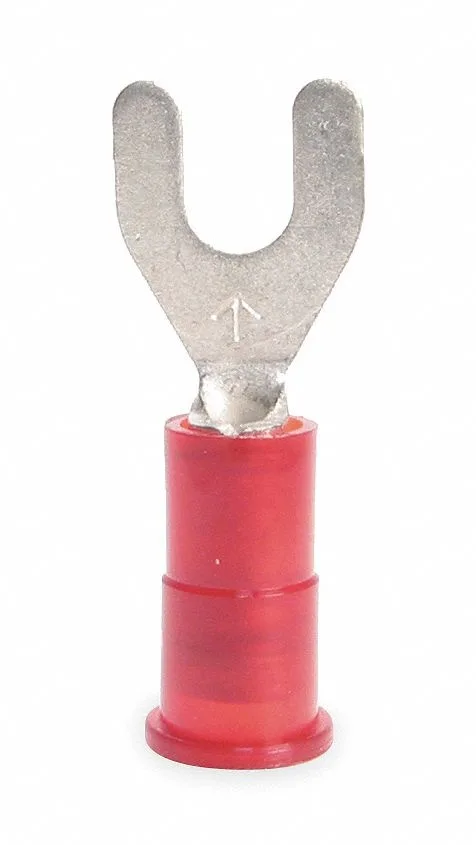

One hundred red nylon-insulated fork terminals with tin-plated copper barrels

3M

3M MNG18-8FX Fork Terminal #8 Stud 18 AWG 600 V Nylon Red 100 Pack

SKU CH-93V8-0ZEAD

Red nylon-insulated fork terminals accept 22–18 AWG wire, crimp to a #8 stud and are rated 600 V at 221 °F in a 100-piece pack

  • TypeElectrical Connectors
  • Crimps 18–22 AWG wire for secure connections
  • #8 stud fork fits standard terminal blocks
  • Nylon insulation rated to 221 °F and 600 V
  • Butted-seam copper barrel with tin finish resists corrosion
  • UL listed, CSA certified, RoHS compliant — 100 pieces

18 AWG Fork Terminal 100 Pack

This pack contains 100 nylon-insulated fork terminals rated for 18 AWG wire and a #8 stud. Each terminal accepts wire from 22 AWG to 18 AWG and carries a 600 V maximum voltage rating. The copper contacts have a tin finish and meet UL and CSA standards.

Suited For And Not Suited For

Electricians and technicians who need a crimp-style fork terminal for 18 AWG wiring in panels, automotive harnesses or appliance repairs will find these parts fit the spec. The butted seam and insulation grip barrel support standard crimp tooling for reliable terminations. Buyers who need a larger stud size, a higher wire gauge or a ring terminal style must select a different part.

Deciding Specification

The #8 stud size is the single dimension that determines whether this terminal fits the mounting hardware in your application. Verify the stud diameter before ordering because the fork opening is fixed for #8 fasteners only.

Highlights

  • Crimps 18–22 AWG wire for secure connections
  • #8 stud fork fits standard terminal blocks
  • Nylon insulation rated to 221 °F and 600 V
  • Butted-seam copper barrel with tin finish resists corrosion
  • UL listed, CSA certified, RoHS compliant — 100 pieces

Specifications

Brand3M
TypeElectrical Connectors

Questions about this item

Which wire gauge should I use with these #8 fork terminals?

These terminals accept wires from 22 AWG up to 18 AWG, so choose 18 AWG for the largest cross-section or 22 AWG for the smallest; both fit the same #8 stud.

What does the 600 V rating mean when the terminal is crimped in a harness?

The 600 V rating is the maximum voltage the nylon insulation and crimp joint are certified to withstand continuously in a properly crimped connection.

How does the butted-seam barrel affect the crimp compared with a brazed seam?

The butted-seam barrel with insulation grip crimps around both conductor and insulation, giving a secure mechanical hold on 18–22 AWG wire without a brazed joint.
