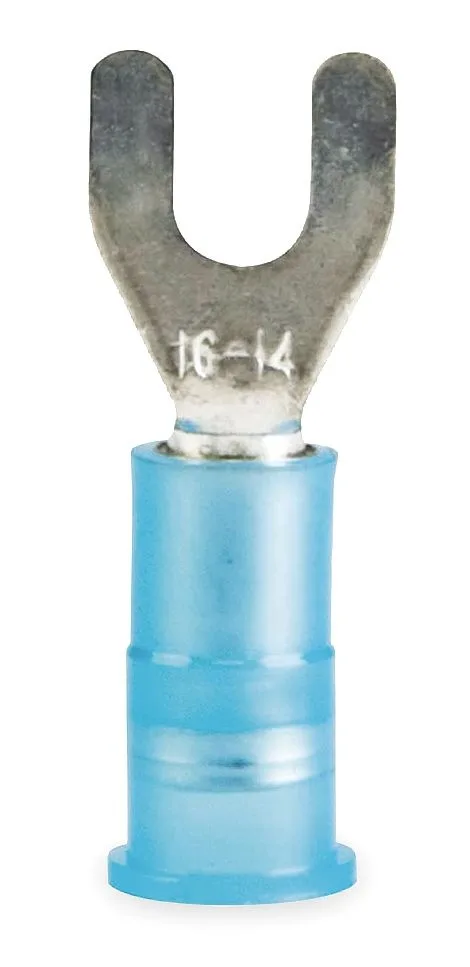

Blue nylon insulated fork terminal, #8 stud, 14-16 AWG, 600 V

3M

3M MNG14-8FX Fork Terminal #8 Stud 14 AWG 600 V Nylon Blue

SKU CH-XBKA-C0H0P

Blue nylon-insulated fork terminal crimps 14-16 AWG wire to a #8 stud, rated 600 V and -40 to 221 °F, with UL and CSA certification

  • TypeElectrical Connectors
  • Handles 14-16 AWG wires for versatile connections
  • 600 V rating supports standard electrical circuits
  • Nylon insulation withstands -40 °F to 221 °F
  • Butted seam and tin-plated copper ensure reliable conductivity
  • UL Listed and CSA Certified for code compliance

3M Fork Terminal 14 AWG #8 Stud

This 3M MNG14-8FX fork terminal is a crimp-style connector designed for 14 AWG wire with a #8 stud size. It suits electrical and industrial wiring tasks where a secure, insulated termination is required. The blue nylon insulation identifies the wire gauge at a glance. Installers working with 14 AWG conductors will find it a direct fit.

600 V Crimp Interface Limits

The terminal is rated for a maximum of 600 V and operates between -40 °F and 221 °F. Its butted-seam barrel and tin-plated copper contact rely on a proper crimp tool to meet UL and CSA listings. Exceeding the voltage rating or using an incorrect crimp die can compromise the connection. The insulation grip barrel adds strain relief but does not replace correct termination practice.

14 AWG Capacity and Headroom

The connector accepts wire from 16 AWG up to 14 AWG, with a barrel length of 0.46 in. It comfortably handles a single 14 AWG conductor within the stated temperature and voltage range. Using wire larger than 14 AWG or stacking multiple conductors exceeds the design limits. The nylon insulation remains stable across the full operating window.

Highlights

  • Handles 14-16 AWG wires for versatile connections
  • 600 V rating supports standard electrical circuits
  • Nylon insulation withstands -40 °F to 221 °F
  • Butted seam and tin-plated copper ensure reliable conductivity
  • UL Listed and CSA Certified for code compliance

Specifications

Brand3M
TypeElectrical Connectors

Questions about this item

Should I pick the 14 AWG or 16 AWG fork terminal for my wiring job?

This terminal accepts both 14 AWG and 16 AWG conductors; choose 14 AWG for thicker wire or 16 AWG for thinner wire.

What does the 600 V rating mean when the terminal is installed in a circuit?

The 600 V rating is the maximum voltage the insulation can withstand; do not exceed it in the finished circuit.

How does the #8 stud size limit the connection in practice?

The #8 stud size means the fork only fits a #8 mounting screw; it will not seat on larger or smaller studs.
