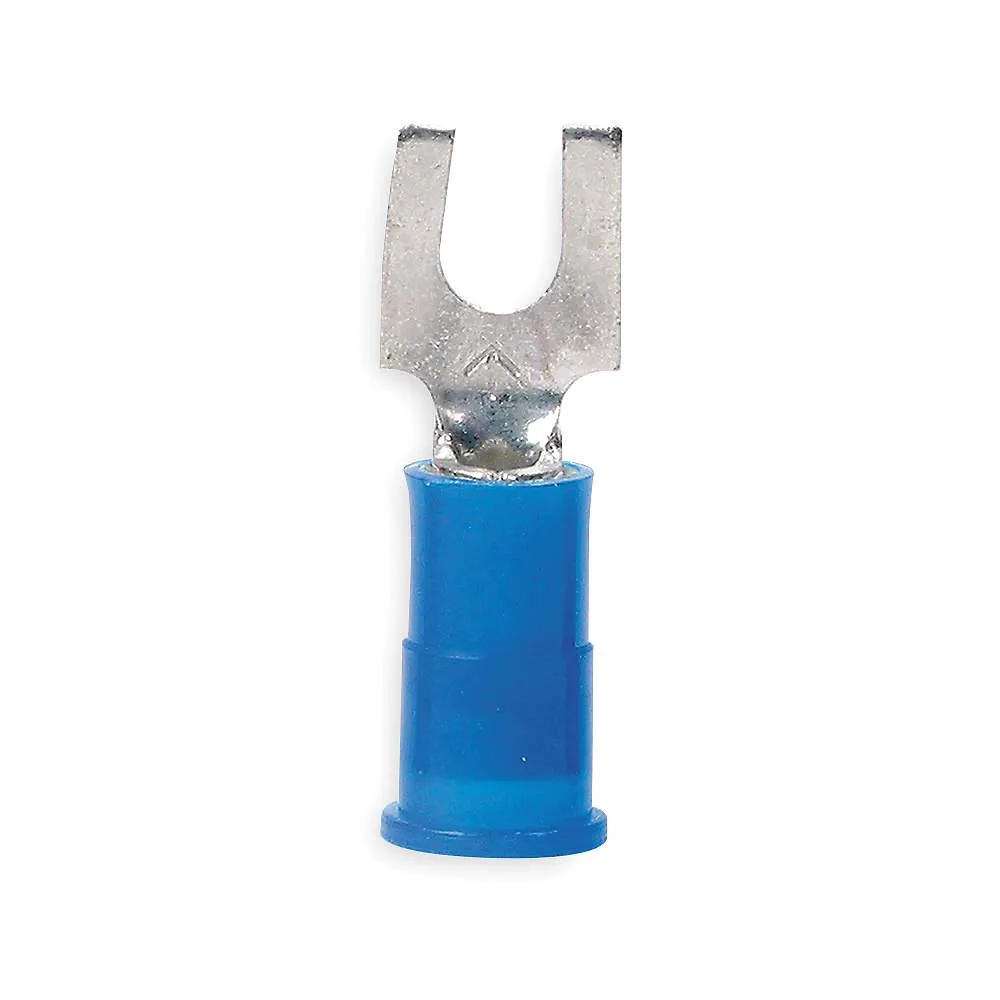

Blue nylon insulated fork terminal with tin plated copper barrel for 14 to 16 AWG wire #10 stud

3M

3M MNG14-10FBX Fork Terminal #10 Stud 14 AWG 600 V Nylon

SKU CH-JYBD-C9NFJ

Blue nylon-insulated fork terminal crimps 14–16 AWG wire to a #10 stud, rated 600 V from –40 °F to 221 °F, UL listed and CSA certified

  • TypeElectrical Connectors
  • Rated for 600 V electrical systems
  • Blue nylon insulation resists heat to 221 °F
  • CSA certified and UL listed for safety
  • Crimp termination fits 14 AWG copper wire
  • Fork design suits #10 stud connections

Fork terminal for 14 AWG #10 studs

This 3M fork terminal accepts 14 AWG wire with a #10 stud size and provides a 600 V rating. Nylon insulation covers a crimp-style copper barrel that is butted-seam and tin finished. The connector is UL listed and CSA certified for electrical installations.

Verify wire gauge and stud match before ordering

Confirm the conductor is between 16 AWG and 14 AWG so it fits the barrel length of .46 in. Ensure the mounting point uses a #10 stud and that the operating temperature stays within -40 to 221 degrees F. The overall length of .86 in must clear adjacent components in the enclosure.

Suits panel builders using 14 AWG on #10 studs

Electricians and panel builders terminating 14 AWG copper on #10 studs will find the crimp connection reliable. Buyers who need a larger wire gauge, a different stud size, or a ring-terminal style should look at other options.

Highlights

  • Rated for 600 V electrical systems
  • Blue nylon insulation resists heat to 221 °F
  • CSA certified and UL listed for safety
  • Crimp termination fits 14 AWG copper wire
  • Fork design suits #10 stud connections

Specifications

Brand3M
TypeElectrical Connectors

Questions about this item

Does the fork terminal include the crimp tool needed for installation?

The terminal is a crimp-style connector; the crimp tool is sold separately and not included in the package.

Should I choose the #10 stud size for a 14 AWG wire or a different stud?

This terminal is built for 14 AWG wire with a #10 stud; it also accepts 16 AWG minimum wire size.

What does the 600 V rating mean when the terminal is crimped in a harness?

The 600 V rating is the maximum voltage the nylon-insulated terminal can withstand after a proper crimp connection.
