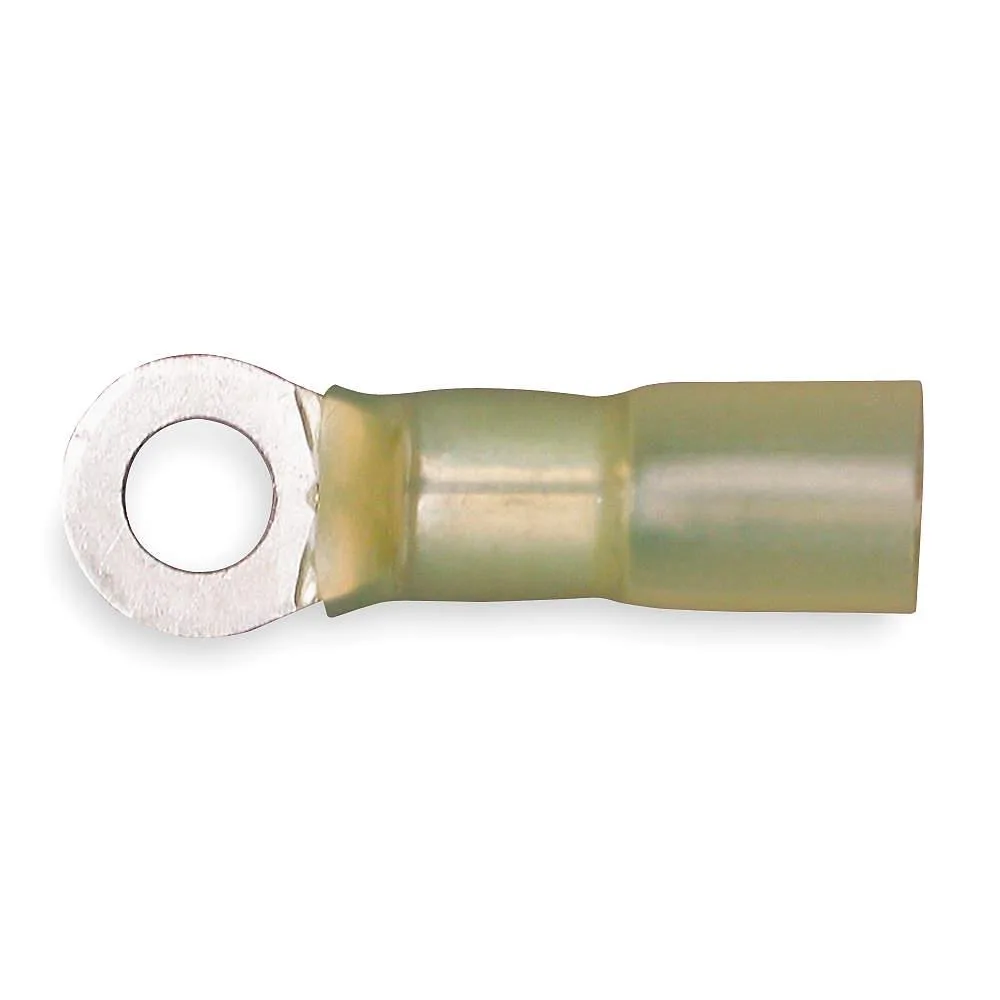

Yellow heat-shrink insulated ring terminal, #8 stud, 10 AWG, 25 pack

3M

3M MH10-8RX Ring Terminal #8 Stud 10 AWG 600 V Heat Shrink 25 Pack

SKU CH-21NX-WKGY8

Heat-shrink insulated ring terminals for 10-12 AWG wire, #8 stud, 600 V, CSA/UL listed, 25 pack

  • TypeElectrical Connectors
  • Heat-shrink insulation seals out moisture for reliable connections
  • Crimp termination accepts 10 to 12 AWG wire for versatile use
  • 600 V rating supports standard automotive and industrial circuits
  • UL Listed and CSA Certified for code-compliant installations
  • 25 terminals per pack covers multiple wiring jobs

3M MH10-8RX Ring Terminals 10 AWG

These 3M MH10-8RX ring terminals accept 10 AWG to 12 AWG wire and are rated for 600 V. Each terminal features a #8 stud size, a 0.38 in tongue width, and copper contacts. The pack contains 25 heat-shrink insulated terminals that meet CSA and UL standards.

Suited for 10 AWG automotive and industrial wiring

Installers working with 10 AWG or 12 AWG conductors in automotive, marine, or industrial circuits will find these terminals match the wire gauge and voltage rating. Buyers who need larger wire sizes, different stud diameters, or non-insulated crimp terminals should look at other options.

Simple crimp and heat-shrink installation

Strip the wire, insert it into the barrel, and crimp with a suitable tool. Then apply heat to shrink the insulation for a sealed connection. The most common issue is using an incorrect crimp die, which can leave a loose joint that fails under vibration or moisture.

Highlights

  • Heat-shrink insulation seals out moisture for reliable connections
  • Crimp termination accepts 10 to 12 AWG wire for versatile use
  • 600 V rating supports standard automotive and industrial circuits
  • UL Listed and CSA Certified for code-compliant installations
  • 25 terminals per pack covers multiple wiring jobs

Specifications

Brand3M
TypeElectrical Connectors

Questions about this item

What wire gauges can I crimp into these 10 AWG yellow terminals?

The terminals accept 10 AWG down to 12 AWG conductors, matching the yellow insulation code for that range.

Will the #8 stud hole fit the #10 screws on my existing terminal block?

No, the #8 stud size is smaller than a #10 screw; you need matching #8 bolts or screws for a secure fit.

How do I confirm the heat-shrink seal is complete after crimping?

Apply heat until the tubing shrinks tightly around the wire and the adhesive liner melts, forming a waterproof seal.
