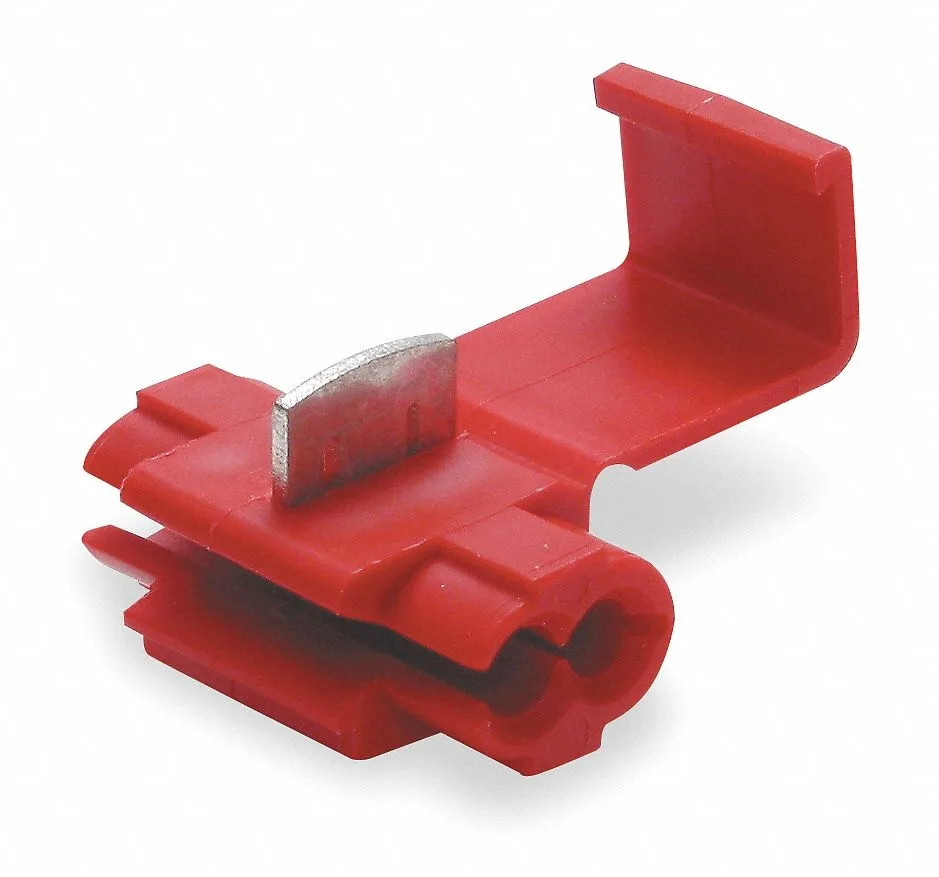

Red 3M 905 displacement connectors in a pack of 50

3M

3M 905 Displacement Connector Red 22-14 AWG PK50

SKU CH-D39G-P2AB9

Pack of 50 red insulation-displacement connectors for 22-14 AWG run and 22-18 AWG tap wires, rated 600 V and 194 °F in dry environments

  • TypeDry Environment
  • Insulation-displacement design speeds wire termination
  • Red colour coding simplifies circuit identification
  • Accepts 22 to 14 AWG run wires and 22 to 18 AWG tap wires
  • Rated for 600 V and 194 °F in dry environments
  • Pack of 50 connectors supports volume wiring jobs

Connector Specifications

The 3M 905 displacement connector accepts run wires from 22 to 14 AWG and tap wires from 22 to 18 AWG. It is rated for a maximum voltage of 600 V and an operating temperature up to 194 Degrees F. The connector uses a single U-element design with polypropylene insulation and no fill material.

Wire Size Limits

The connector requires run wire insulation diameter up to .145 in and tap wire insulation diameter up to .11 in. It provides two ports for making connections in dry environments only. Exceeding the stated wire gauge or insulation diameter ranges will prevent a reliable insulation displacement connection.

Installation Check

Verify that your application is a dry environment and that wire gauges fall within the 22 to 14 AWG run and 22 to 18 AWG tap ranges. Confirm the maximum voltage does not exceed 600 V. The pack contains 50 red connectors compliant with RoHS and CE standards.

Highlights

  • Insulation-displacement design speeds wire termination
  • Red colour coding simplifies circuit identification
  • Accepts 22 to 14 AWG run wires and 22 to 18 AWG tap wires
  • Rated for 600 V and 194 °F in dry environments
  • Pack of 50 connectors supports volume wiring jobs

Specifications

Brand3M
TypeDry Environment

Questions about this item

Should I pick the 50-pack or look for a smaller quantity?

This listing is the 905 model in a 50-piece pouch; no other pack sizes are offered here.

What does the 600 V rating mean when I’m splicing wires in a fixture?

It means the connector is rated for circuits up to 600 volts, so it’s suitable for standard mains-voltage lighting and appliance wiring.

How does the insulation-displacement design affect the 22-14 AWG range?

The U-element pierces insulation on run wires from 22 to 14 AWG and tap wires from 22 to 18 AWG without stripping, accepting run insulation up to .145 in and tap insulation up to .11 in.
