Black resin splice kit with EPDM rubber mold, lug covers, cold shrink tubes, sealing strips, tapes, cleaning cloths, silicone grease

3M

3M 5322 Resin Compound Splice Kit 4-1/0 AWG 8000V

SKU CH-GQCX-FMTPA

Resin compound splice kit joins 4 to 1/0 AWG cables up to 8000 V with EPDM mould, tape, mastic and lubricant included

  • TypeBuilding Wire
  • Rated up to 8000 V for high-voltage splicing
  • RoHS 2011/65/EU compliant for environmental safety
  • Operates up to 194 °F in demanding environments

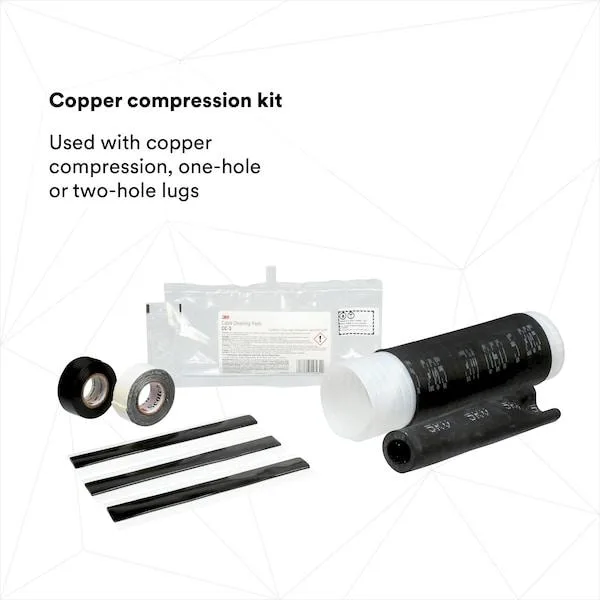

  • Complete kit includes lug covers, cold-shrink tubes and tapes
  • 0 in overall length fits 4 to 1/0 AWG conductors

3M 5322 Resin Splice Kit

The 3M 5322 is a resin compound splice kit designed for joining or repairing building wire in the 4 to 1/0 AWG range. It supplies the materials needed to create insulated, sealed connections rated for up to 8000 V. The kit includes lug covers, cold-shrink tubes, mastic sealing strips, tapes, solvent cloths and silicone grease lubricant for a complete installation.

Voltage rating 5000 V to 8000 V

The single specification that decides fit is the voltage rating of 5000 V to 8000 V. The resin with plastic EPDM rubber mold is tested to this range and to a maximum temperature of 194 degrees F. If the circuit operates outside this voltage window or above the temperature limit, the kit is not suitable.

Electricians splicing 4 to 1/0 AWG building wire

This kit suits electricians and maintenance crews making inline splices on 4 to 1/0 AWG building wire where a cold-shrink, resin-based seal is specified. It is not for installers who need a heat-shrink system, a different wire-range coverage, or a voltage class above 8000 V.

Highlights

  • Rated up to 8000 V for high-voltage splicing
  • RoHS 2011/65/EU compliant for environmental safety
  • Operates up to 194 °F in demanding environments
  • Complete kit includes lug covers, cold-shrink tubes and tapes
  • 0 in overall length fits 4 to 1/0 AWG conductors

Specifications

Brand3M
TypeBuilding Wire

Questions about this item

What does the 8000 V rating mean when the kit is installed on a live circuit?

The kit is rated for continuous operation up to 8000 volts, so it can be used on systems operating anywhere between 5000 V and 8000 V without exceeding its insulation limits.

Which standard governs the kit's voltage rating and environmental compliance?

The kit meets RoHS 2011/65/EU for restricted substances and is designed for splice applications up to 8000 V in accordance with the manufacturer's voltage specification.

What physical space and preparation are needed to fit the 9.0 in splice assembly?

You need a straight cable section at least 9.0 inches long, cleaned with the supplied solvent cloths, to accommodate the resin mold, cold-shrink tubes, mastic strips and tapes included in the kit.
