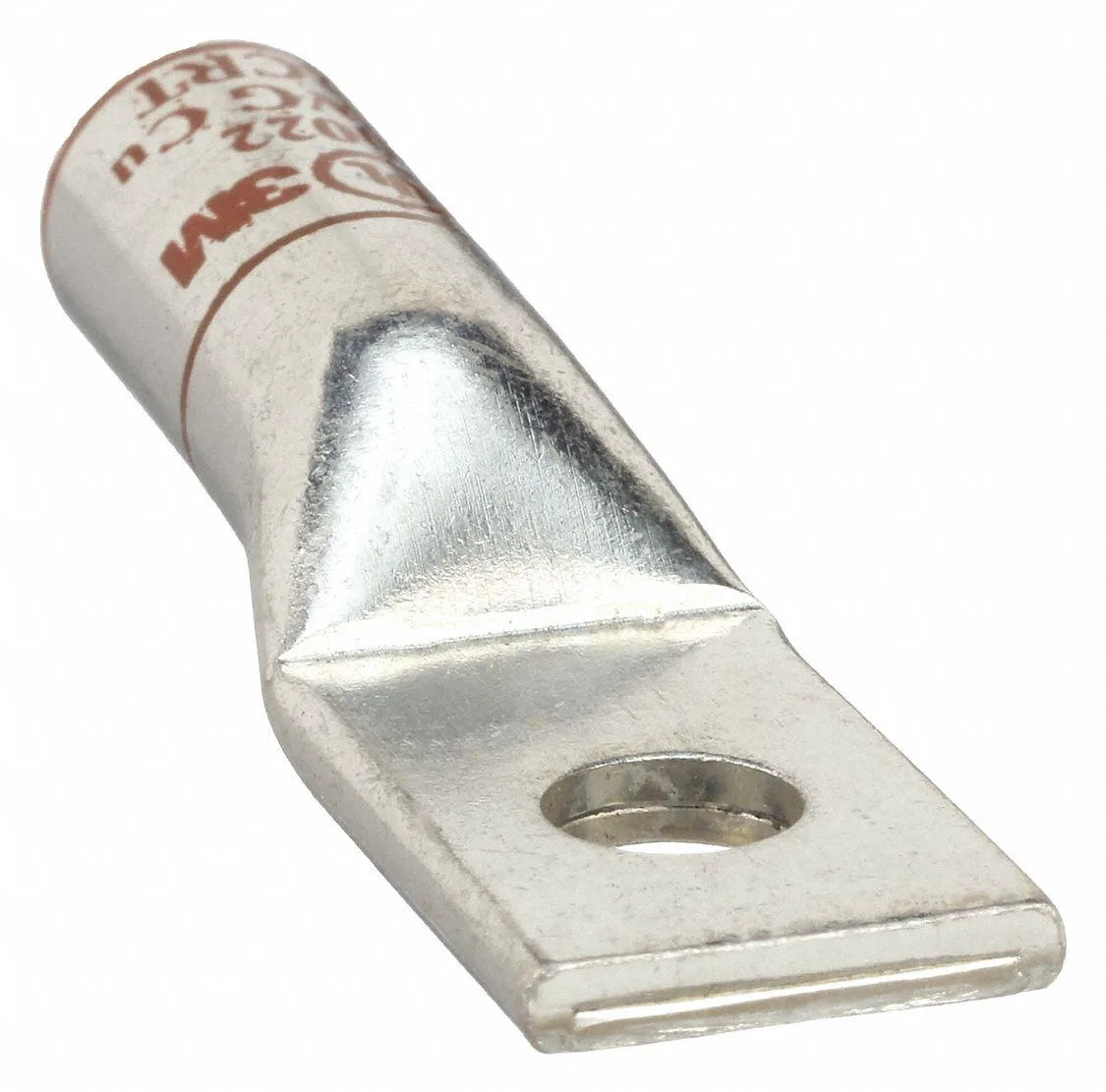

Copper compression lug, straight tongue, brown colour code, pack of 25

3M

3M 30022 One Hole Lug Compress Connector 2 AWG PK25

SKU CH-SDQA-7F93N

Copper compression lugs for 2 AWG wire, 1/4 in stud, 35 kV rated, UL listed, pack of 25

  • TypeElectrical Connectors
  • Crimp termination ensures secure copper connections
  • UL Listed and CSA Certified for code compliance
  • 35 kV maximum voltage rating supports high-voltage applications
  • Pack of 25 connectors reduces reorder frequency
  • 63 in tongue width fits 1/4 in studs

2 AWG Copper Compression Lug

This 3M 30022 lug provides a secure crimp termination for 2 AWG stranded copper conductors. It accepts a 1/4 inch stud and is rated for 35 kV maximum voltage. The connector meets UL and CSA standards and is supplied in a pack of 25.

Installers needing a single-hole straight lug

Suitable for electrical contractors and maintenance teams terminating 2 AWG copper wire in panels or equipment. Not intended for aluminium conductors, multi-hole patterns, angled tongues, or applications requiring an inspection window.

Straight tongue with 0.63 inch width

The straight tongue measures 0.63 in wide and fits a 1/4 in stud hole. Barrel inside diameter is 0.3 in and outside diameter is 0.42 in. Die code 10 and brown colour code identify the correct crimping tool.

Highlights

  • Crimp termination ensures secure copper connections
  • UL Listed and CSA Certified for code compliance
  • 35 kV maximum voltage rating supports high-voltage applications
  • Pack of 25 connectors reduces reorder frequency
  • 63 in tongue width fits 1/4 in studs

Specifications

Brand3M
TypeElectrical Connectors

Questions about this item

What voltage does the 35 kV rating actually support in a crimped copper lug?

The lug is rated for a maximum of 35 kV when crimped to stranded copper wire up to 2 AWG using the correct die code 10 tool.

What stud size and hole spacing does the single-hole tongue require?

The straight tongue has a 0.63 in width and one hole sized for a 1/4 in stud; there is no centre-to-centre dimension because only one hole is present.

How do I crimp the chamfered barrel correctly and what common step is missed?

Use a die code 10 crimper on the 0.42 in outside-diameter barrel, insert the stripped conductor fully into the 0.3 in inside diameter, and do not skip the full-cycle compression that seats the lug flush.
