3M

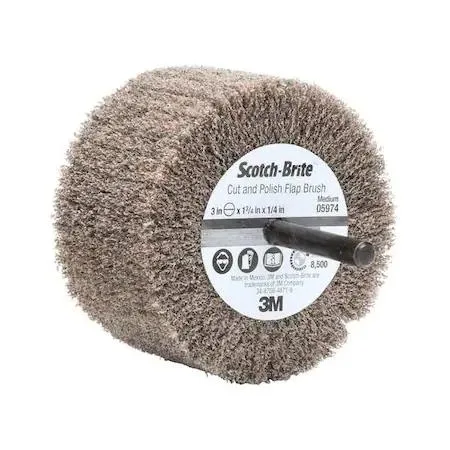

3M 05974 Surface Conditioning Flap Wheel 3x1.75x1/4 MED
Aluminium-oxide non-woven flap wheel for surface conditioning on 6 mm shanks, medium grade, 8,500 RPM maximum speed
- TypeSanders
- Weight0.25
- MaterialHAWA
- Medium-grade non-woven abrasive blends and finishes metal surfaces
- Aluminium oxide flaps cut consistently at up to 8,500 RPM
- 1/4 in straight shank fits standard rotary tools
- 3 in diameter by 1.75 in wide covers more area per pass
- Weighs only .25 lb for reduced operator fatigue
Surface Conditioning Flap Wheel

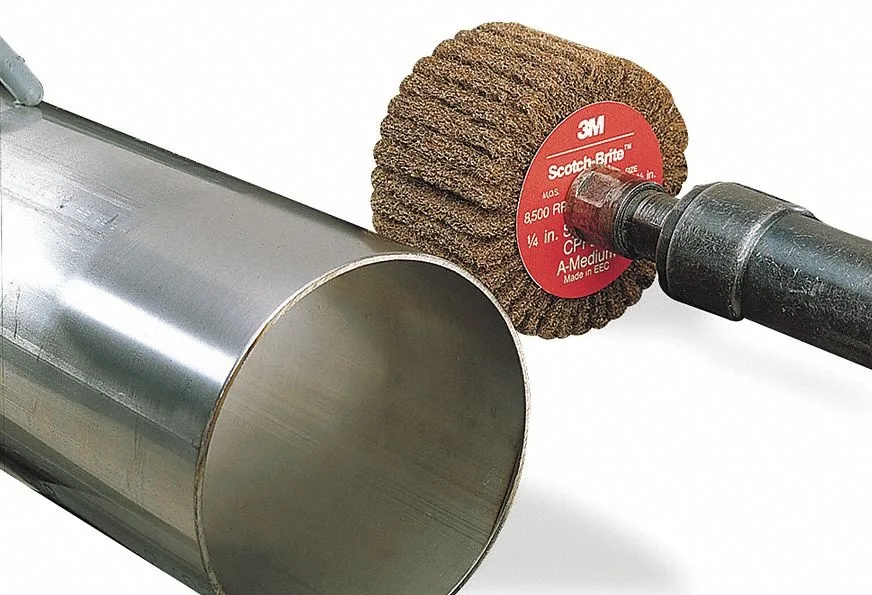

The 3M 05974 is a non-woven abrasive wheel designed for surface preparation and finishing tasks. It fits die grinders or rotary tools with a straight 1/4 inch shank. The aluminum oxide construction suits metalworking applications such as blending, deburring and cleaning.
Medium Grade Abrasive
The medium grade determines the cutting aggressiveness and finish quality for this specific wheel. It provides a balance between material removal and surface smoothness without requiring a grit size designation. Select this grade when the job calls for general-purpose conditioning rather than heavy stock removal or fine polishing.
3 Inch Diameter By 1.75 Inch Width
The wheel measures three inches in overall diameter with a flap width of 1.75 inches, giving a usable face for contoured or flat surfaces. It requires a tool capable of running at or below 8,500 RPM maximum operating speed. The straight 1/4 inch shank mounts directly into compatible collets or chucks.
Highlights
- Medium-grade non-woven abrasive blends and finishes metal surfaces
- Aluminium oxide flaps cut consistently at up to 8,500 RPM
- 1/4 in straight shank fits standard rotary tools
- 3 in diameter by 1.75 in wide covers more area per pass
- Weighs only .25 lb for reduced operator fatigue
Specifications
| Type | Sanders |
|---|---|
| Weight | 0.25 |
| Brand | 3M |
| Model | 05974 |
| Material | HAWA |
| Shipping weight | 4.99 kg |
| Package size | 305 × 305 × 305 mm |
Questions about this item
How does the 8,500 RPM maximum speed affect performance on a hand-held tool?
The 8,500 RPM limit matches many right-angle die grinders; running faster risks flap separation and reduces surface finish consistency.
What does the 1/4-inch straight shank mean for tool compatibility?
The 1/4-inch straight shank fits standard collets on die grinders and rotary tools without adapters.
Will the 3-inch diameter by 1.75-inch wide wheel clear tight inside corners?
The 3-inch diameter and 1.75-inch flap width need at least that much radial and axial clearance; it will not reach deep narrow channels.
