3DMakerPro
3DMakerPro Seal 3D Scanner Standard Edition 0.01mm Blue Light
Handheld blue-light 3D scanner captures objects from 10 to 300 mm at 0.01 mm accuracy with 24-bit colour and 10 fps scanning
- Supported OSWindows/Mac/Android/iOS
- Scan Object Sizes10-300mm
- Dimensional Accuracy0.01mm
- Distance180-280mm
- Scan Speed10fps
- Colors24-bit full color scanning
Model Seal
- Seal
- Seal Lite
- 01 mm accuracy captures tiny dents and edge textures with blue LED structured light

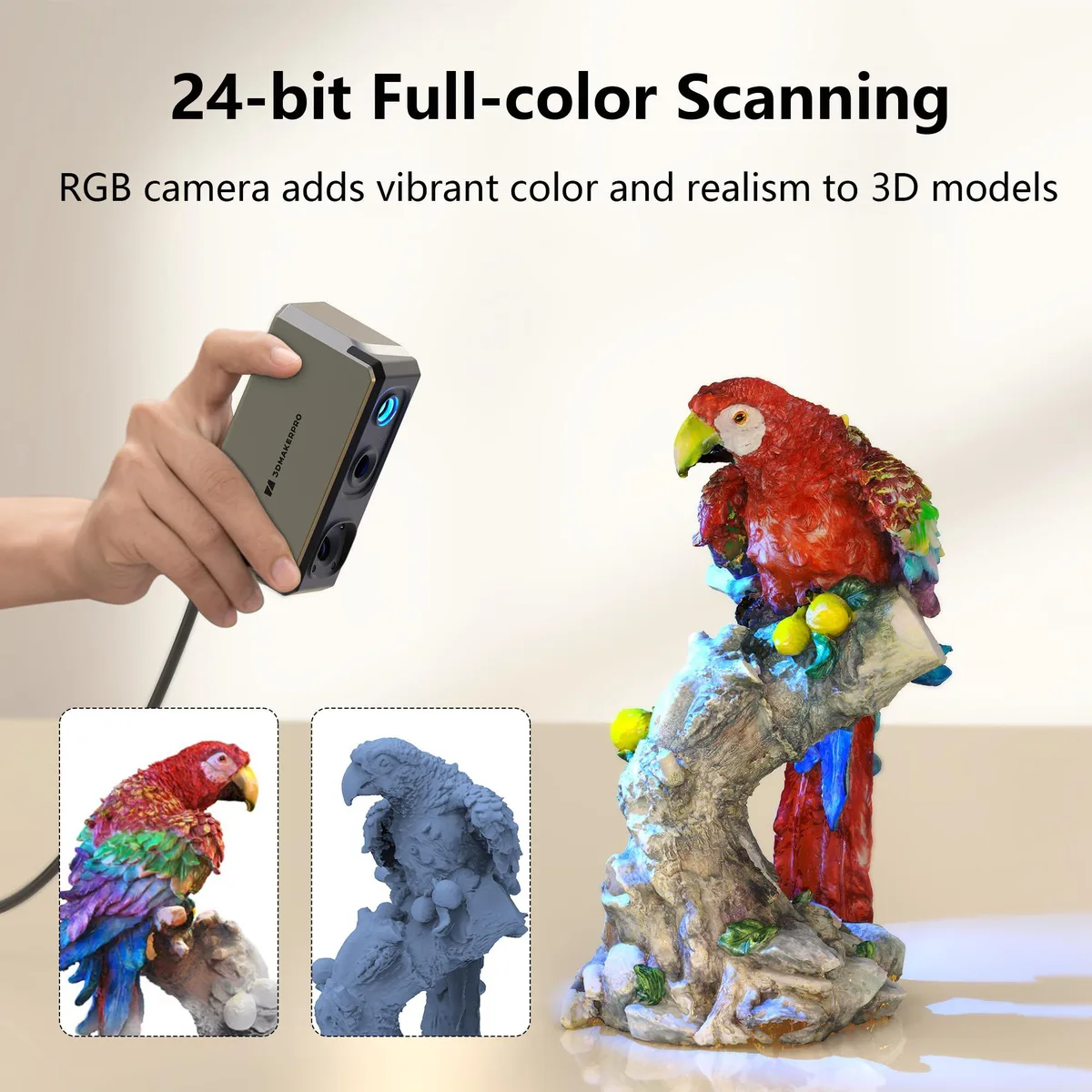

- 24-bit full-colour texture camera records vibrant colours and lifelike surface detail
- 10 fps scan rate plus anti-shake and scan-back functions deliver smoother, more accurate results

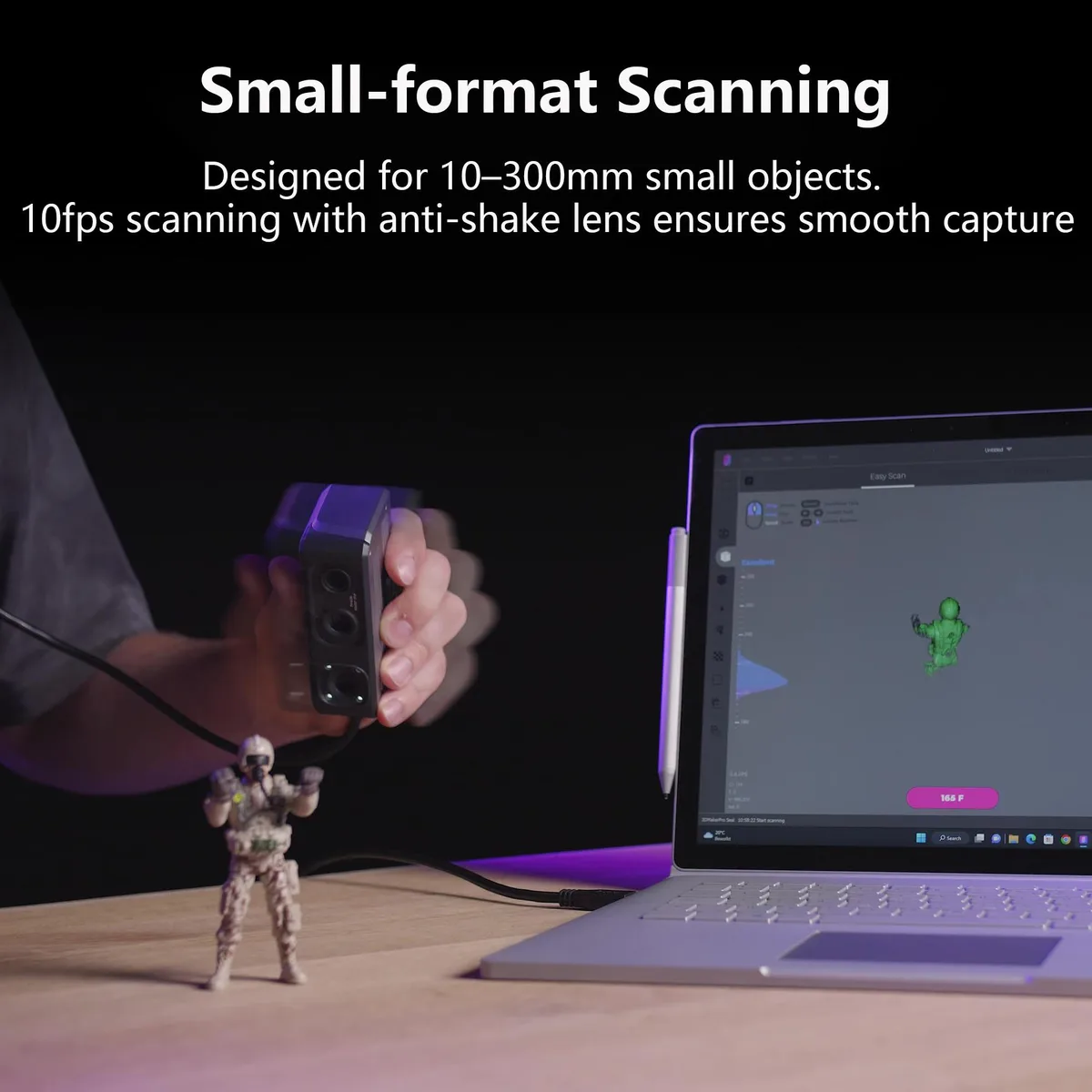

- Scans objects from 10 to 300 mm at 180–280 mm working distance for small-format flexibility
- Compact 110×60×35 mm, 254 g body with JMStudio software exporting OBJ, STL, PLY, ASC files
Small-format 3D scanner for detailed models
The 3DMakerPro Seal Standard Edition is a blue-light structured scanner built for objects between 10 and 300mm. It achieves 0.01mm dimensional accuracy at a working distance of 180 to 280mm. The device suits makers, designers and engineers who need precise geometry and colour data for 3D printing or digital archiving.
Included JMStudio software adds visual tracking
The bundled JMStudio application provides visual tracking, error correction and automatic alignment during capture. It exports models directly in OBJ, STL, PLY and ASC formats, removing the need for third-party conversion tools. The software runs on Windows, Mac, Android and iOS so the same workflow works across desktop and mobile devices.
Handheld operation with optional accessories
The scanner weighs 254g and measures 110×60×35mm, allowing comfortable handheld use at 10fps with built-in anti-shake and scan-back functions. Calibration requires no special equipment. Users scanning very small or reflective parts often add the optional turntable or Smart Grip to reduce tracking loss and maintain consistent framing.
Highlights
- 01 mm accuracy captures tiny dents and edge textures with blue LED structured light
- 24-bit full-colour texture camera records vibrant colours and lifelike surface detail
- 10 fps scan rate plus anti-shake and scan-back functions deliver smoother, more accurate results
- Scans objects from 10 to 300 mm at 180–280 mm working distance for small-format flexibility
- Compact 110×60×35 mm, 254 g body with JMStudio software exporting OBJ, STL, PLY, ASC files
Specifications
| Brand | 3DMakerpro |
|---|---|
| Model | Seal |
| Series | Seal Standard |
| Supported OS | Windows/Mac/Android/iOS |
| Scan Object Sizes | 10-300mm |
| Dimensional Accuracy | 0.01mm |
| Distance | 180-280mm |
| Scan Speed | 10fps |
| Colors | 24-bit full color scanning |
| Light Source | Blue light |
| Calibration | No special equipment required |
| Included Software | Yes |
| Software Compatibility | JMStuio |
| File Output Format | OBJ/STL/PLY/ASC |
| Product Size/Dimensions | 110×60×35mm |
| Product Weight | 254g |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
Does the blue LED light source on the Seal 3D Scanner degrade and need replacement?
The blue LED light source operates at 400500nm wavelength and is solid-state with no user-replaceable parts.
What limits scan quality first during extended sessions with the Seal scanner?
The recommended working distance of 180-280mm must be maintained for optimal 0.01mm accuracy.
How much power does the Seal 3D Scanner draw when scanning continuously all day?
The scanner weighs 254g and measures 110×60×35mm with no external power adapter required.
