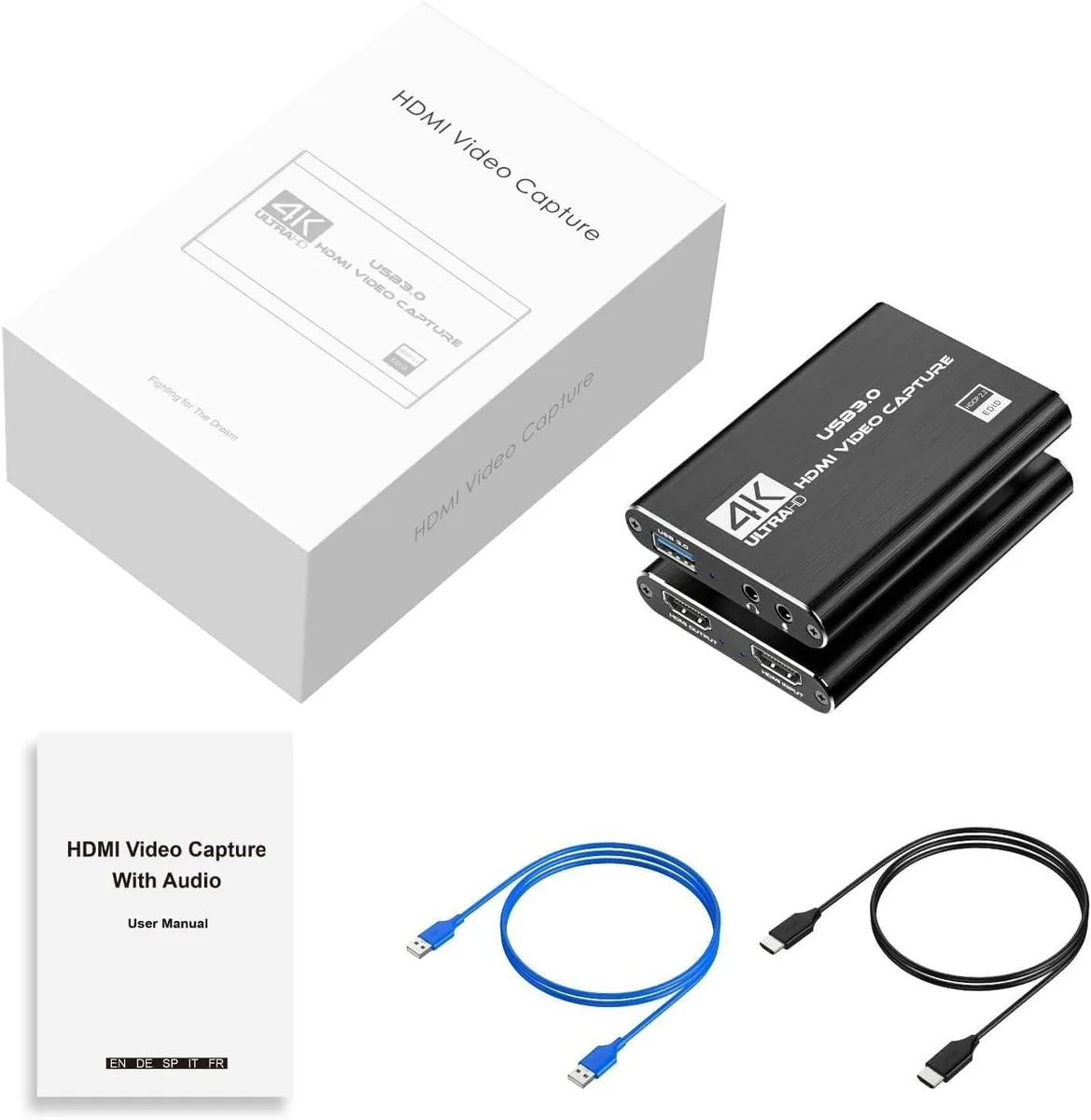

Small black capture box with HDMI ports and a 3.5 mm mic jack

3D Video Wizard 4K HDMI Capture Card 1080p 60 USB 3.0 Black

SKU CH-N088-FMG9W

Captures 1080p 60 video via HDMI with USB 3.0, loop-out, and 3.5 mm mic input for streaming

  • Housing Colorgray
  • InterfaceHDMI
  • SpecificationA computer system with USB 3.0 port and compatible Windows,
  • Others4K HDMI input support, 3.5mm microphone input, 4K HDMI LOOP-
  • Resolution Support1080P
  • FormatHDMI
  • Capture up to 1080p 60 fps video from HDMI sources
  • Plug-and-play USB 3.0 connection works without drivers or external power
  • HDMI loop-out passes the signal to a display with no added delay
  • 5 mm microphone input lets you add live commentary while recording
  • Compatible with Windows, Mac OS and Linux for streaming to OBS, Twitch or YouTube

Capture Card for 1080p Streaming

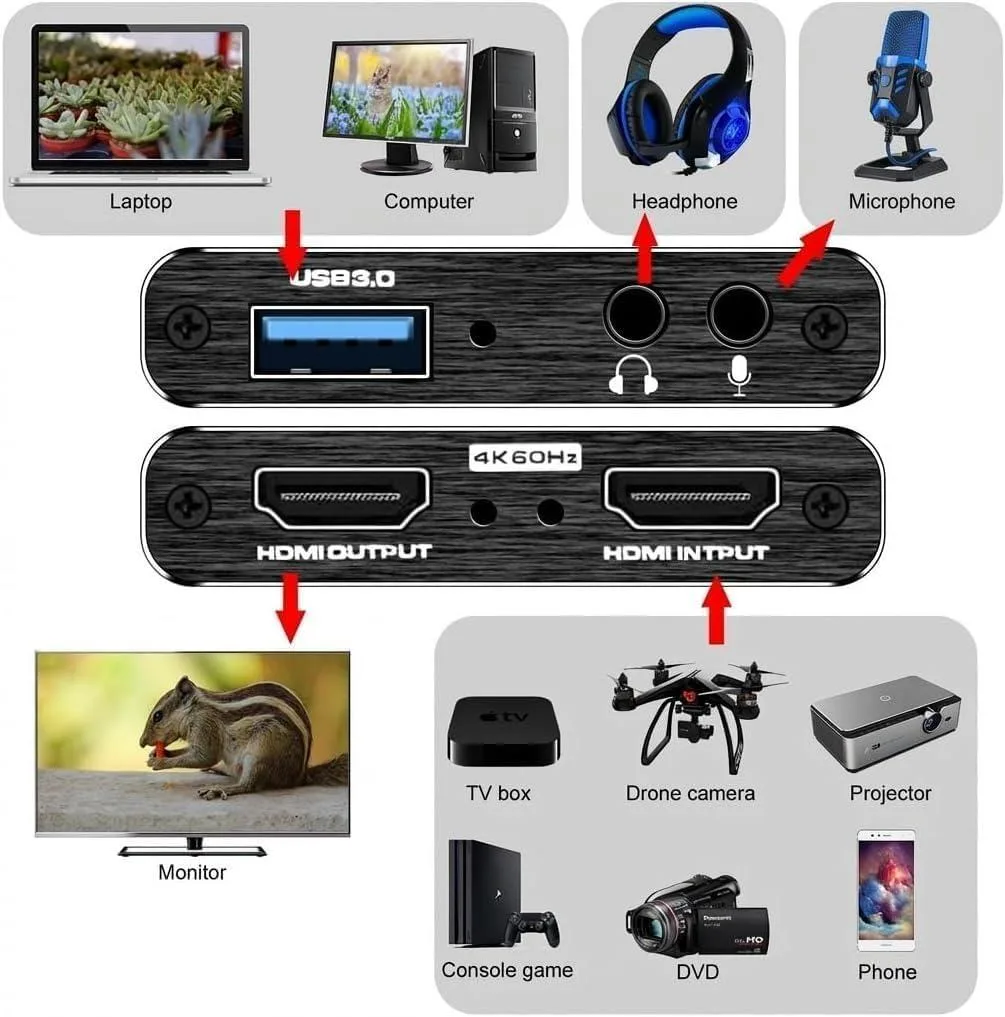

The 3D Video Wizard 4K HDMI Capture Card accepts 4K HDMI input and records or streams at 1080p 60 frames per second. It connects through a USB 3.0 port and works with Windows, Linux and MacOS without driver installation. A 3.5 mm TRS microphone input adds live commentary and an HDMI loop-out passes the signal to a display.

Suits Single-PC Streamers; Not for 4K Recording

Creators who need a plug-and-play device for Twitch, YouTube or OBS on one computer will find the low-latency USB 3.0 path convenient. Console players can capture from PS4, PS5, Xbox or Switch while watching on a monitor through the loop-out. Buyers who want to record or stream at 4K resolution should look elsewhere because the capture engine is limited to 1080p.

Deciding Spec: 1080p 60 Capture Ceiling

The single specification that determines fit is the maximum capture resolution of 1080p at 60 frames per second. Although the HDMI input accepts a 4K signal, the device cannot encode or pass 4K to the host software. If your workflow requires 4K recording or streaming, this card will not meet that need.

Highlights

  • Capture up to 1080p 60 fps video from HDMI sources
  • Plug-and-play USB 3.0 connection works without drivers or external power
  • HDMI loop-out passes the signal to a display with no added delay
  • 5 mm microphone input lets you add live commentary while recording
  • Compatible with Windows, Mac OS and Linux for streaming to OBS, Twitch or YouTube

Specifications

Brand3D Video Wizard
Series4K HDMI Capture Card
Model4K HDMI Capture Card
Part Number4K HDMI Capture Card
Housing Colorgray
InterfaceHDMI
SpecificationA computer system with USB 3.0 port and compatible Windows, Linux, or MacOS operating system, usb3.0, 1080p, HDMI, Windows and Mac OS, 4K HDMI input support, 3.5mm microphone input, 4K HDMI LOOP-OUT, Video Recording, Image Capture
Others4K HDMI input support, 3.5mm microphone input, 4K HDMI LOOP-OUT, Video Recording, Image Capture, usb3.0, 1080p, HDMI, Windows and Mac OS, A computer system with USB 3.0 port and compatible Windows, Linux, or MacOS operating system
Resolution Support1080P
FormatHDMI
Max Monitor SupportedHDMI
ColorBlack
VideoHDMI, 1080p
Audio4K HDMI input support, 3.5mm microphone input, 4K HDMI LOOP-OUT
Device Controlusb3.0, A computer system with USB 3.0 port and compatible Windows, Linux, or MacOS operating system
Video OutputHDMI
Audio Input4K HDMI input support, 3.5mm microphone input, 4K HDMI LOOP-OUT
Other Connectorusb3.0
LED Indicator4K HDMI input support, 3.5mm microphone input, 4K HDMI LOOP-OUT
Display1080p
System RequirementsA computer system with USB 3.0 port and compatible Windows, Linux, or MacOS operating system
Power SupplyA computer system with USB 3.0 port and compatible Windows, Linux, or MacOS operating system, false, usb3.0
Feature4K HDMI input support, 3.5mm microphone input, 4K HDMI LOOP-OUT
Windows VistaCertified for Windows Vista
Features4K HDMI input support, 3.5mm microphone input, 4K HDMI LOOP-OUT, Video Recording, Image Capture, nintendo_switch, windows, usb3.0, 1080p
Dimensions14.33in W x 12.83in H x 9.06in D
Weight0.299 kilograms
Ports Outusb3.0
SpecificationsA computer system with USB 3.0 port and compatible Windows, Linux, or MacOS operating system, usb3.0, 1080p, HDMI, 4K HDMI input support, 3.5mm microphone input, 4K HDMI LOOP-OUT, 0.299 kilograms, 5.207 L x 11.0998 W x 16.1036 H centimeters, Capture Card
ProcessorA computer system with USB 3.0 port and compatible Windows, Linux, or MacOS operating system
Graphics CardA computer system with USB 3.0 port and compatible Windows, Linux, or MacOS operating system
MemoryA computer system with USB 3.0 port and compatible Windows, Linux, or MacOS operating system
Available Slotusb3.0
Operating Systems SupportedMicrosoft Windows, Linux
Video EncodingHardware Encoding

Questions about this item

What ports does the 3D Video Wizard 4K HDMI Capture Card need on my computer and source device?

Your computer requires a USB 3.0 port and the source device must provide an HDMI output; the card also includes a 3.5 mm microphone input and an HDMI loop-out for a local display.

Which step in the OBS Studio setup do users most often miss when configuring this capture card?

In OBS Audio settings, disable all global audio devices except Mic/Auxiliary, set that to Digital Audio Interface (USB 3.0 Audio), then right-click it > Advanced Audio Properties and change monitoring to "Monitor Only (Mute Output)".

Will the 3.5 mm microphone jack on this capture card accept a headset with a TRRS plug for game commentary?

No, the 3.5 mm input only accepts a TRS standard microphone headset; a TRRS headset will not work for external commentary.
