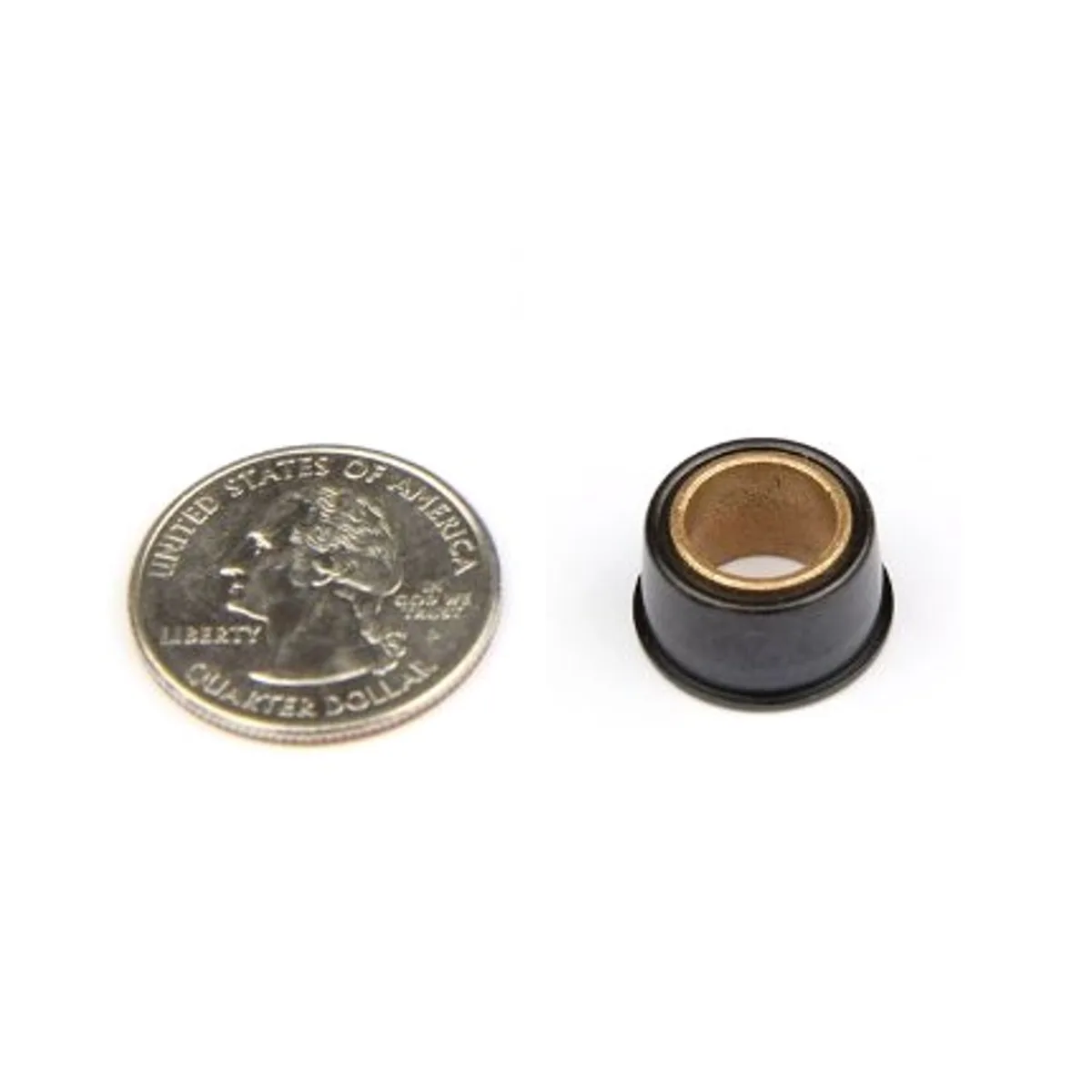

Small bronze bushing with flanged shoulder and smooth bore

3D Maker World

3D Maker World Bronze Bushing 10 mm 3D Printers Accessory

SKU CH-W4PJ-GQ9WS

Self-aligning bronze bushing with 10.02 mm bore, 10.8 mm height and 1,850 N radial load rating for press-fit 3D printer motion

  • Self-aligning design tolerates up to +/- 5 deg misalignment
  • Sintered bronze construction provides self-lubricating operation
  • Press-fit installation into 15.9 mm panel holes
  • Supports radial loads up to 1,850 N
  • Rated for speeds up to 9,700 RPM

10 mm Bronze Bushing for 3D Printers

This 10 mm bore bronze bushing is designed for press-fit installation in 3D printer motion systems. Sintered bronze construction provides self-lubricating operation without external grease. The bearing handles radial loads up to 1,850 N and speeds up to 9,700 RPM.

Suited for Linear Motion Upgrades and Repairs

Builders replacing worn bearings or designing custom linear assemblies will benefit from the +/- 5 degree self-alignment that compensates for minor shaft misalignment. Printers requiring sealed or flanged bearings, or those needing a different bore size, should look at alternative bearing types.

Press-Fit Design Simplifies Assembly

The 15.9 mm panel hole and 17.5 mm shoulder diameter allow direct installation into printed or machined parts without retaining clips. A 10.8 mm bearing height and 10.02 mm bore diameter ensure consistent fit on standard 10 mm shafts. No additional lubrication or hardware is required.

Highlights

  • Self-aligning design tolerates up to +/- 5 deg misalignment
  • Sintered bronze construction provides self-lubricating operation
  • Press-fit installation into 15.9 mm panel holes
  • Supports radial loads up to 1,850 N
  • Rated for speeds up to 9,700 RPM

Specifications

No published specifications for this item yet.

Questions about this item

What bore size must my linear shaft be for this 10 mm bronze bushing to fit correctly?

The bushing bore is 10.02 mm, so a 10 mm precision ground shaft provides the correct running clearance for the sintered bronze material.

Will the self-aligning feature of this bushing compensate for slight frame misalignment on my older printer?

Yes, the bushing self-aligns up to +/- 5 deg, allowing it to accommodate minor frame or mounting surface irregularities without binding.

After press-fitting the bushing into the 15.9 mm panel hole, how can I confirm it is seated and functioning properly?

Verify the shoulder sits flush at 17.5 mm diameter, then rotate the shaft by hand; it should turn smoothly through the full 10.8 mm bearing height with no tight spots.
