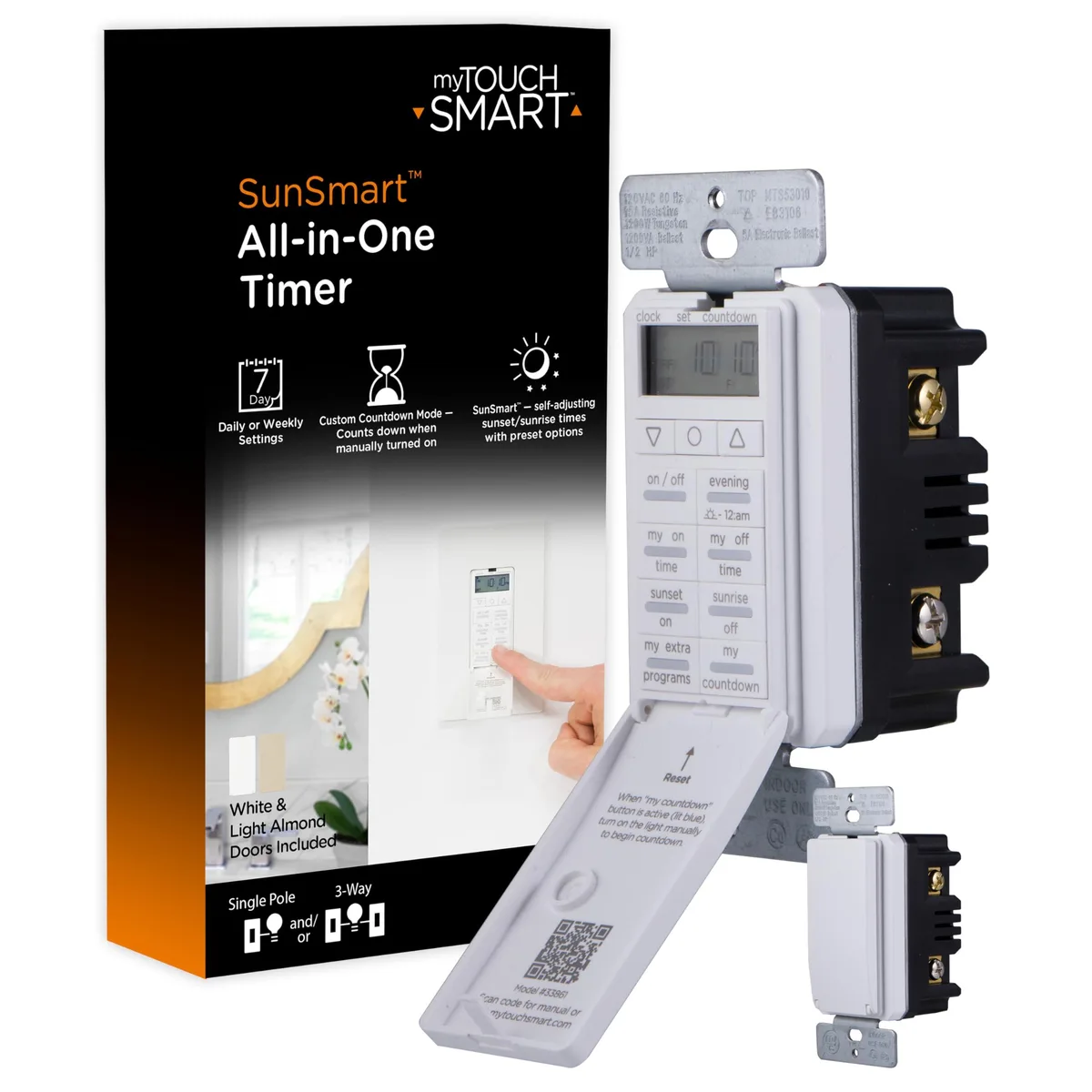

33861 LE One In-Wall Digital Timer Switch, 120V 15A
An in-wall digital timer switch schedules lights and fans with eight custom on/off times, countdown mode and a backlit LED screen
- TypeWall Mount, Screw, All-In-One
- Voltage12
- Amps15
- Compatibility/FitmentLights, Fans
- Timing RangeScheduled
- Pole ConfigurationScrew
- Saves energy by scheduling lights and fans automatically
- All-in-one unit with eight custom on/off times plus countdown mode
- SunSmart technology self-adjusts to local sunrise and sunset times
- Screw-terminal wiring fits standard boxes when a neutral wire is present
- Backup battery keeps programmed settings during power outages
In-Wall Digital Timer Switch 120V 15A

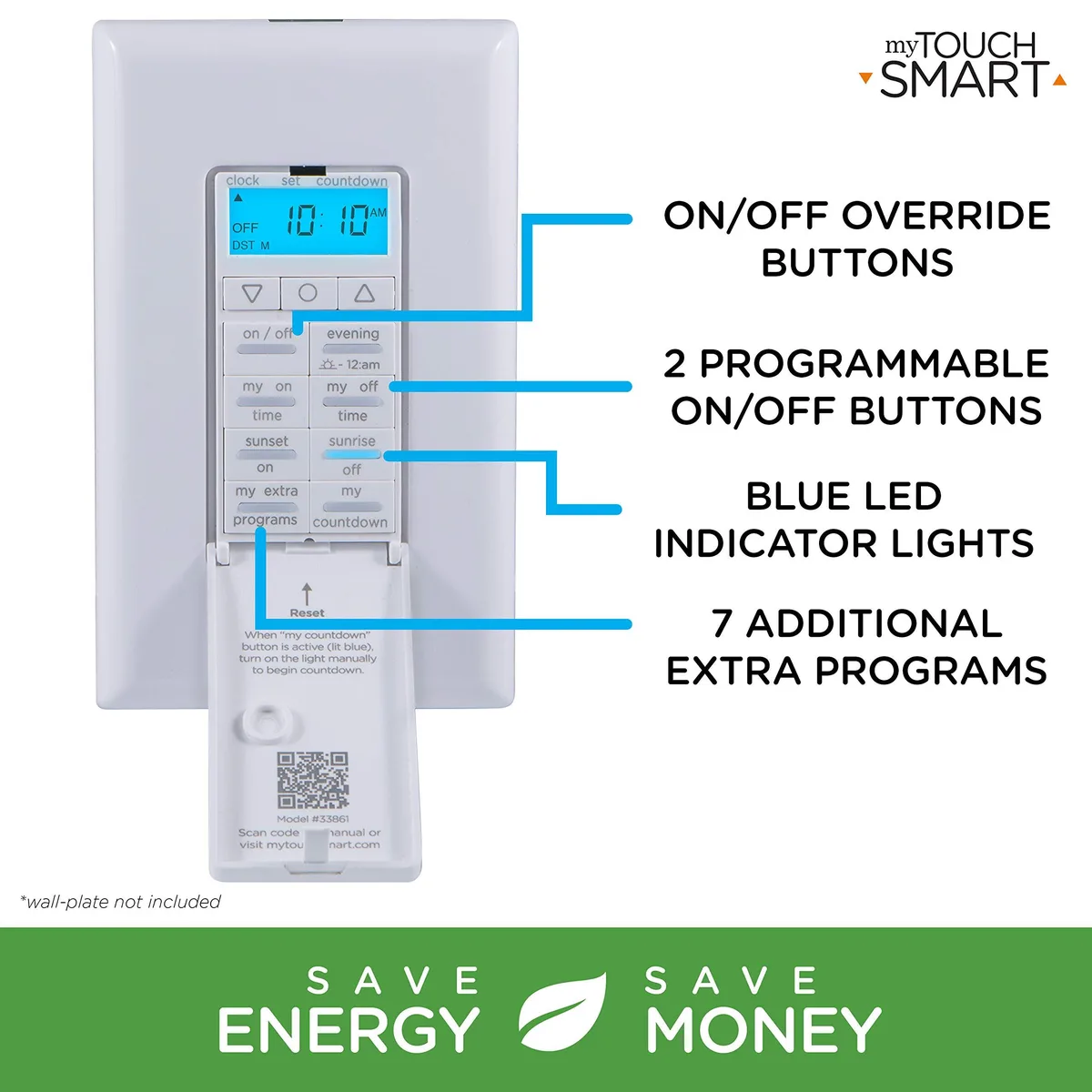

The 33861 LE One replaces a standard single-pole light switch to automate indoor or outdoor lights and fans. It requires a neutral wire and fits a standard wall box with screw-terminal connections. A blue backlit LED screen and push-door manual override simplify daily operation.
SunSmart Automatic Sunrise/Sunset Adjustment
SunSmart technology calculates local sunrise and sunset times so the unit self-adjusts throughout the year without manual reprogramming. Eight custom on/off programs plus seven extra programs and a countdown mode cover weekly schedules and one-off timing needs.
Suited for Homeowners Automating Lighting and Fans
Buyers who need to control loads without a neutral wire, or who require three-way or multi-location switching, should look at a different device. The timer is rated for resistive loads up to 15 A, tungsten up to 10 A and motor loads up to 1/2 HP at 120 VAC.
Highlights
- Saves energy by scheduling lights and fans automatically
- All-in-one unit with eight custom on/off times plus countdown mode
- SunSmart technology self-adjusts to local sunrise and sunset times
- Screw-terminal wiring fits standard boxes when a neutral wire is present
- Backup battery keeps programmed settings during power outages
Specifications
| Type | Wall Mount, Screw, All-In-One |
|---|---|
| Voltage | 12 |
| Amps | 15 |
| Compatibility/Fitment | Lights, Fans |
| Timing Range | Scheduled |
| Pole Configuration | Screw |
| Number of Receptacles | All-In-One, 33861 |
| Receptacle Type | 15 amps, 125 volts_of_alternating_current |
| Size/Dimensions | 6.6 in x 8.64 in x 11.18 in |
| Color/Finish | White |
| Style | Screw |
| Standards/Certifications | UL Listed/CSA Certified |
| Switch Type | Push Button |
| Maximum Time Setting | Scheduled |
| Number of Poles | 1-way |
| Contact Form | 1-way |
| Enclosure Type | IP01, Wall Mount |
| Input Voltage | 125 volts_of_alternating_current |
| Mounting | Wall Mount |
| Operating Temperature Range | 0 degrees_celsius to 40 degrees_celsius |
| Features | Lights, Fans |
| Brand | myTouchSmart |
| Model | 33861 |
| Item Count | 12 pack |
| Selling Unit | All-In-One |
| Commercial/Residential | Lights, Fans |
| Part Number | 33861 |
Questions about this item
What does the 15 A rating mean for the lights or fan I connect?
The switch handles up to 15 A resistive, 10 A tungsten, 5 A electronic ballast and 1/2 HP motor loads at 120 VAC, so it can control most household lighting circuits and small fans.
How does the 120 VAC screw-terminal connection affect installation?
A neutral wire is required and the screw terminals replace an existing single-pole switch directly, saving space compared with flying-lead devices.
Will the 6.6 in x 8.64 in x 11.18 in body fit in a standard wall box?
The unit mounts in a standard wall box; a wall plate is not included, so you will need to supply one that matches your décor.
