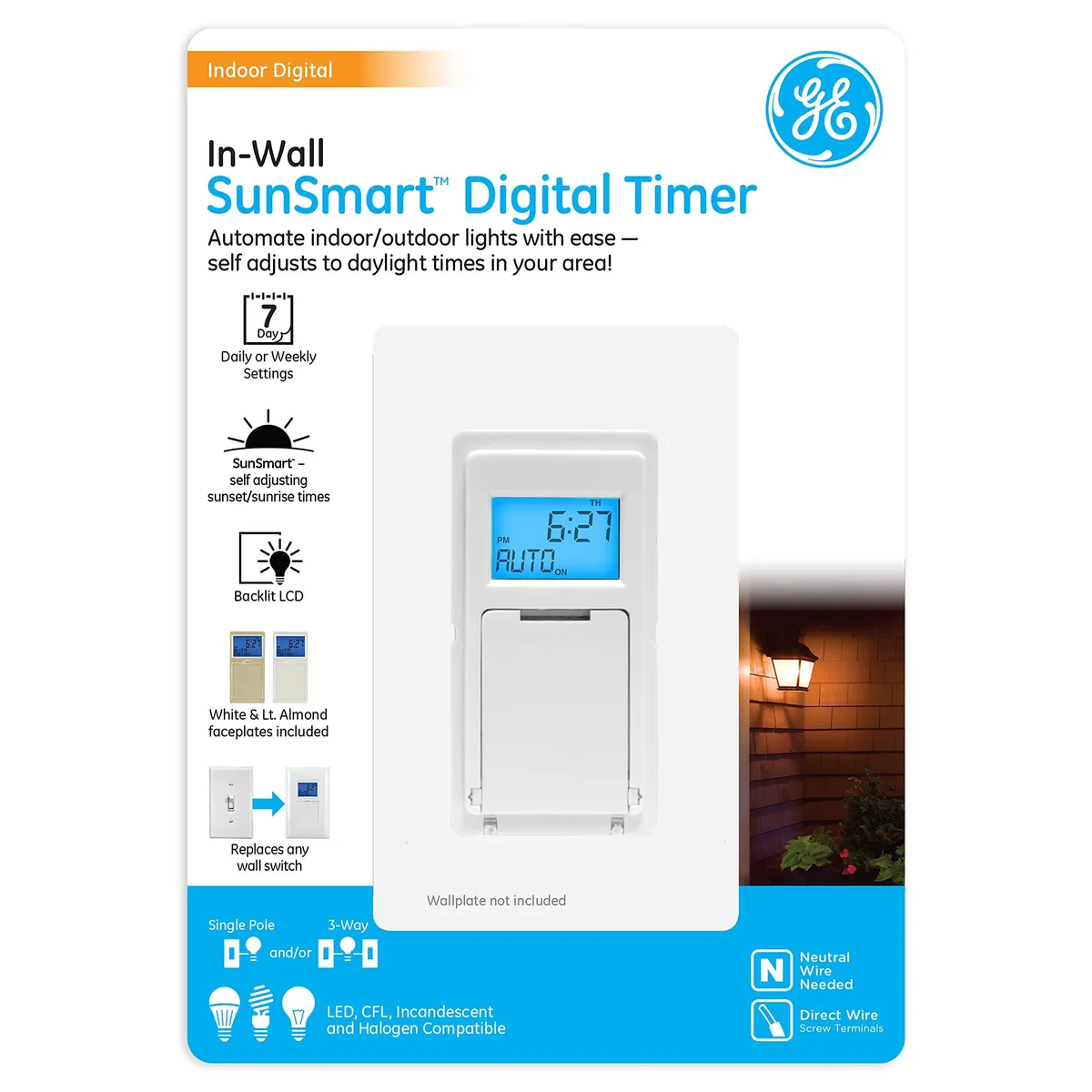

White rectangular in-wall digital timer switch with rocker button and LCD display

32787 7-Day In-Wall Digital Timer Switch 120V 10A

SKU CH-H48Q-2VR1V MPN 32787

A 120 V in-wall digital timer with SunSmart sunrise/sunset adjustment and seven weekly on/off programs for lights, fans or heaters up to 1800 W

  • TypeWall Mount, Clamp, SunSmart Digital
  • Voltage12
  • Amps10A
  • Compatibility/FitmentLED bulbs, CFL bulbs, incandescent bulbs, halogen bulbs, lig
  • Timing RangeProgrammable Timer Control
  • Pole ConfigurationSPDT
  • Auto-adjusts to local sunrise and sunset times with SunSmart technology
  • Create up to seven weekly on/off programs with random security variation
  • Replaces single-pole or three-way switches with neutral wire for LED, CFL, incandescent and halogen loads
  • Optional daylight-saving setting updates clock automatically without reprogramming
  • Controls lights, fans, heaters and other fixtures up to 1800 watts at 120 volts

Wall-mount digital timer with SunSmart

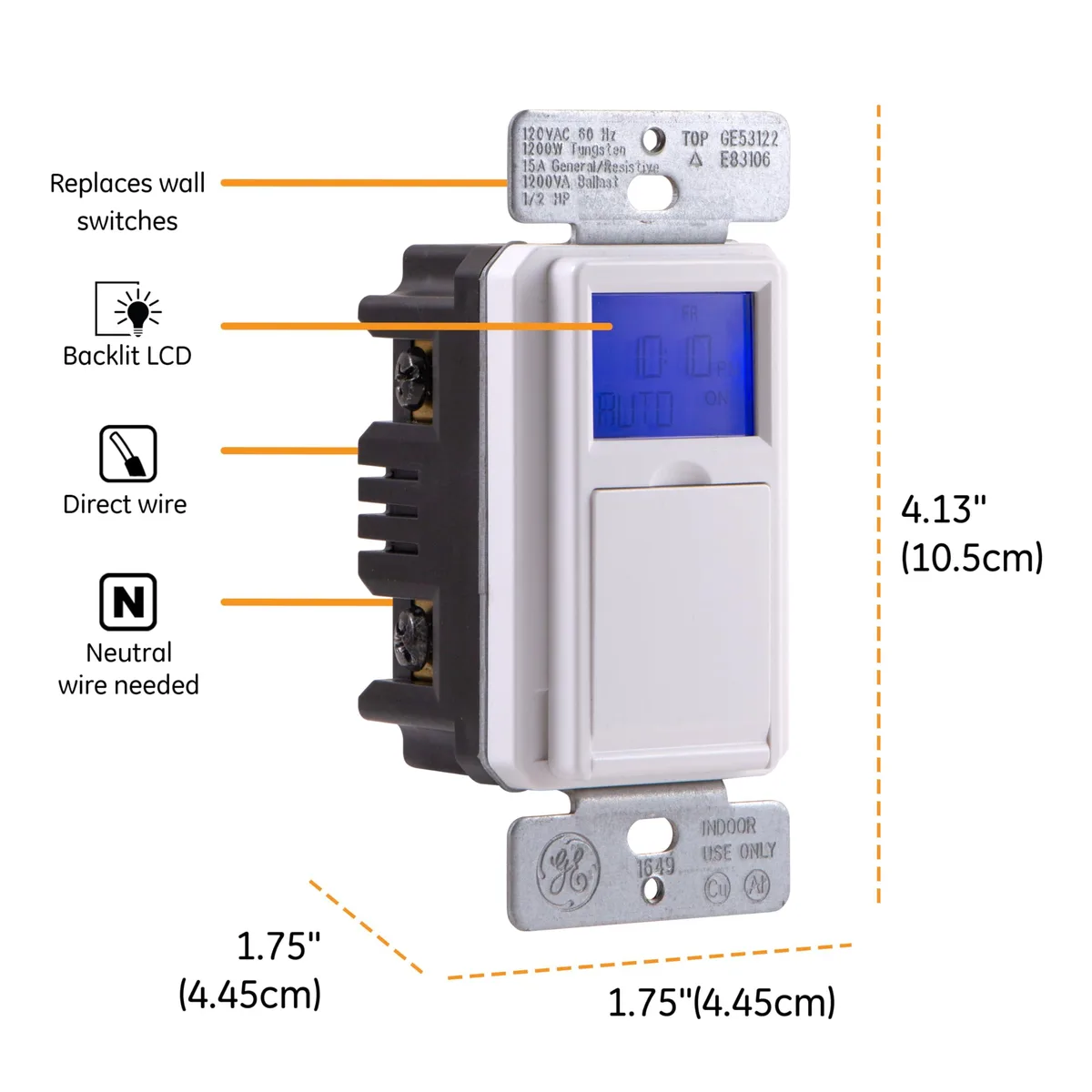

The 32787 replaces a standard single-pole or three-way wall switch and controls lights, fans or heaters up to 1800 watts at 120 volts. It fits a single-gang box and uses a rocker-style actuator. A neutral wire is required for installation.

Suits owners wanting automatic seasonal adjustment

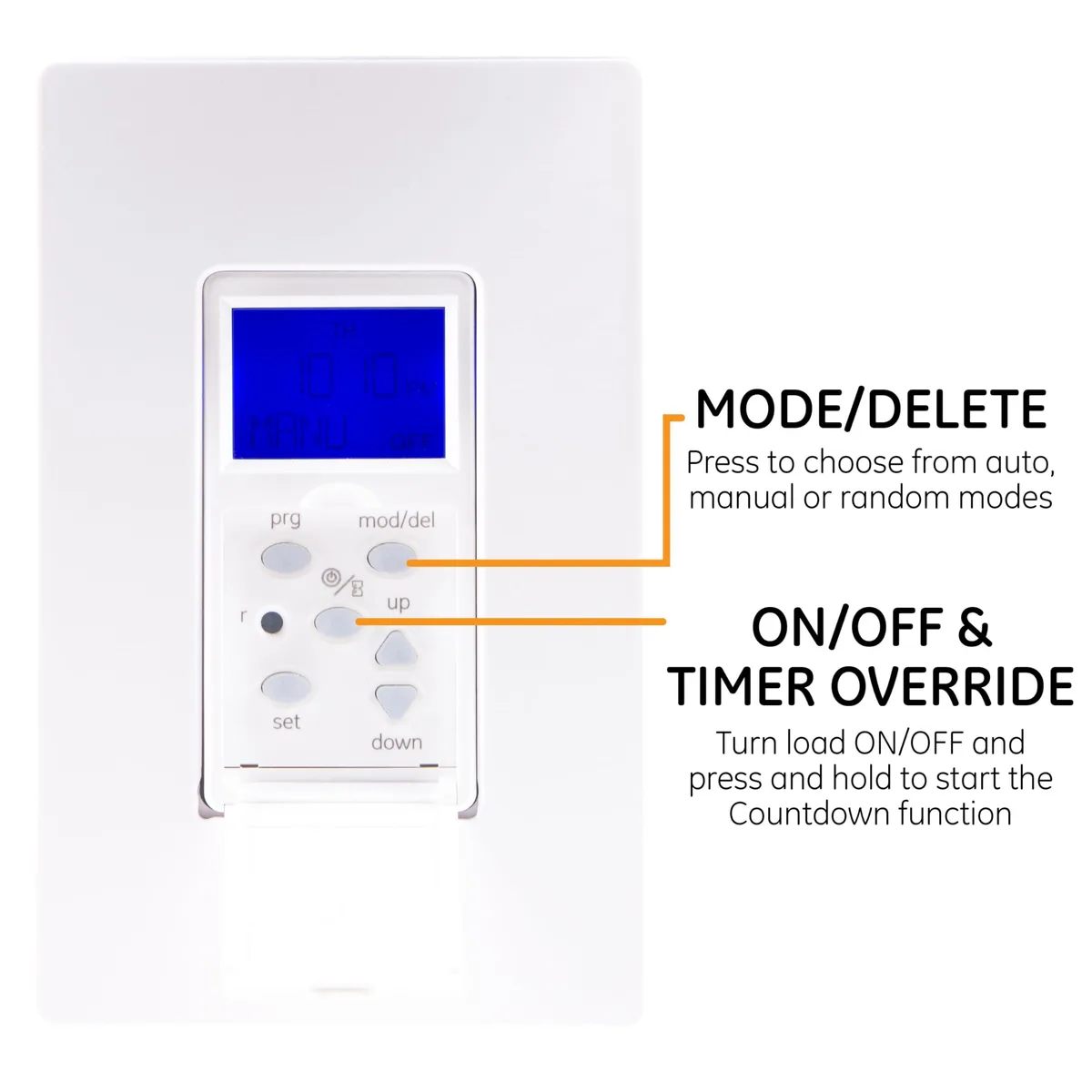

SunSmart technology adjusts on/off times to local sunrise and sunset throughout the year, and up to seven weekly programs can be stored. The random security feature shifts times by up to 30 minutes. Buyers without a neutral wire in the switch box cannot use this timer.

SPDT contact rated 10 amps resistive

The switch uses a single-pole double-throw contact rated for 10 amps at 120 volts AC resistive loads. This rating determines whether the connected load — lights, fan or heater — falls within safe operating limits.

Highlights

  • Auto-adjusts to local sunrise and sunset times with SunSmart technology
  • Create up to seven weekly on/off programs with random security variation
  • Replaces single-pole or three-way switches with neutral wire for LED, CFL, incandescent and halogen loads
  • Optional daylight-saving setting updates clock automatically without reprogramming
  • Controls lights, fans, heaters and other fixtures up to 1800 watts at 120 volts

Specifications

TypeWall Mount, Clamp, SunSmart Digital
Voltage12
Amps10A
Compatibility/FitmentLED bulbs, CFL bulbs, incandescent bulbs, halogen bulbs, lights, fans, heaters
Timing RangeProgrammable Timer Control
Pole ConfigurationSPDT
Horsepower1800 watts
Watts1800 watts
Number of ReceptaclesSunSmart Digital, 32787
Receptacle Type10 amps, 120 volts
Size/Dimensions6.8 in x 4.75 in x 2.3 in
Color/FinishWhite
StyleClamp
Switch TypeRocker
Maximum Time SettingProgrammable Timer Control
Number of Poles3-way
Contact Form3-way
Enclosure TypeIP00, Wall Mount
Input Voltage120 volts
MountingWall Mount
Operating Temperature Range32 degrees_fahrenheit to 104 degrees_fahrenheit
FeaturesLED bulbs, CFL bulbs, incandescent bulbs, halogen bulbs, lights, fans, heaters
BrandTygerClaw
Model32787
Item Count12 pack
Selling UnitSunSmart Digital
Commercial/ResidentialLED bulbs, CFL bulbs, incandescent bulbs, halogen bulbs, lights, fans, heaters
Part Number32787

Questions about this item

What wiring must already be in the wall box for the 32787 timer to operate?

A neutral wire is required in the wall box for the timer to power its electronics and control the load.

Will the 32787 work in a three-way lighting circuit that I am keeping?

Yes, the switch is rated for three-way use and replaces existing three-way switches when a neutral is present.

How can I verify the sunrise and sunset automation is active after installation?

The display shows the calculated sunrise and sunset times for your programmed region, confirming the SunSmart feature is running.
