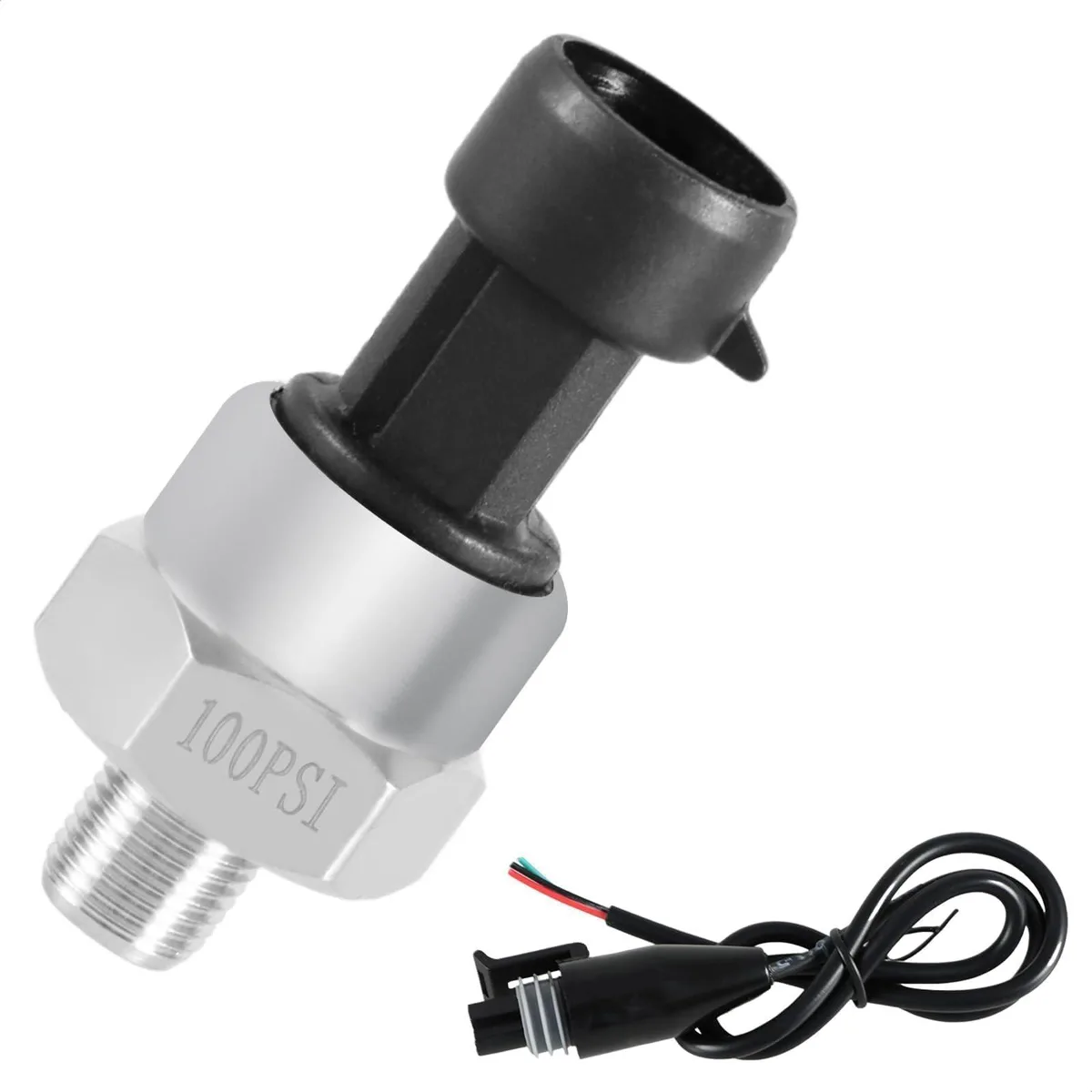

100 PSI Pressure Transducer Gauge
100 PSI pressure transducer outputs 0.5V to 4.5V linear signal on 5V DC power with 1/8" NPT stainless steel thread
- Accurate readings with ±1.0% full-scale error across the range
- Linear 0.5 V to 4.5 V output simplifies data logging
- 316 stainless steel and ceramic construction resists corrosion and impact
- 1/8"-27 NPT thread fits standard oil, fuel, water and air ports
- Low 3 mA draw at 5 V DC eases integration into vehicle electrics
100 PSI Pressure Transducer
This new 100 PSI pressure transducer sensor provides a 0.5V to 4.5V linear voltage output powered by 5V DC. It uses a 1/8" - 27 NPT thread and a housing made from 316 stainless steel with ceramic pressure plates. The unit suits oil, fuel, water and air pressure measurement in tanks and similar applications.
Check Thread And Voltage Before Install

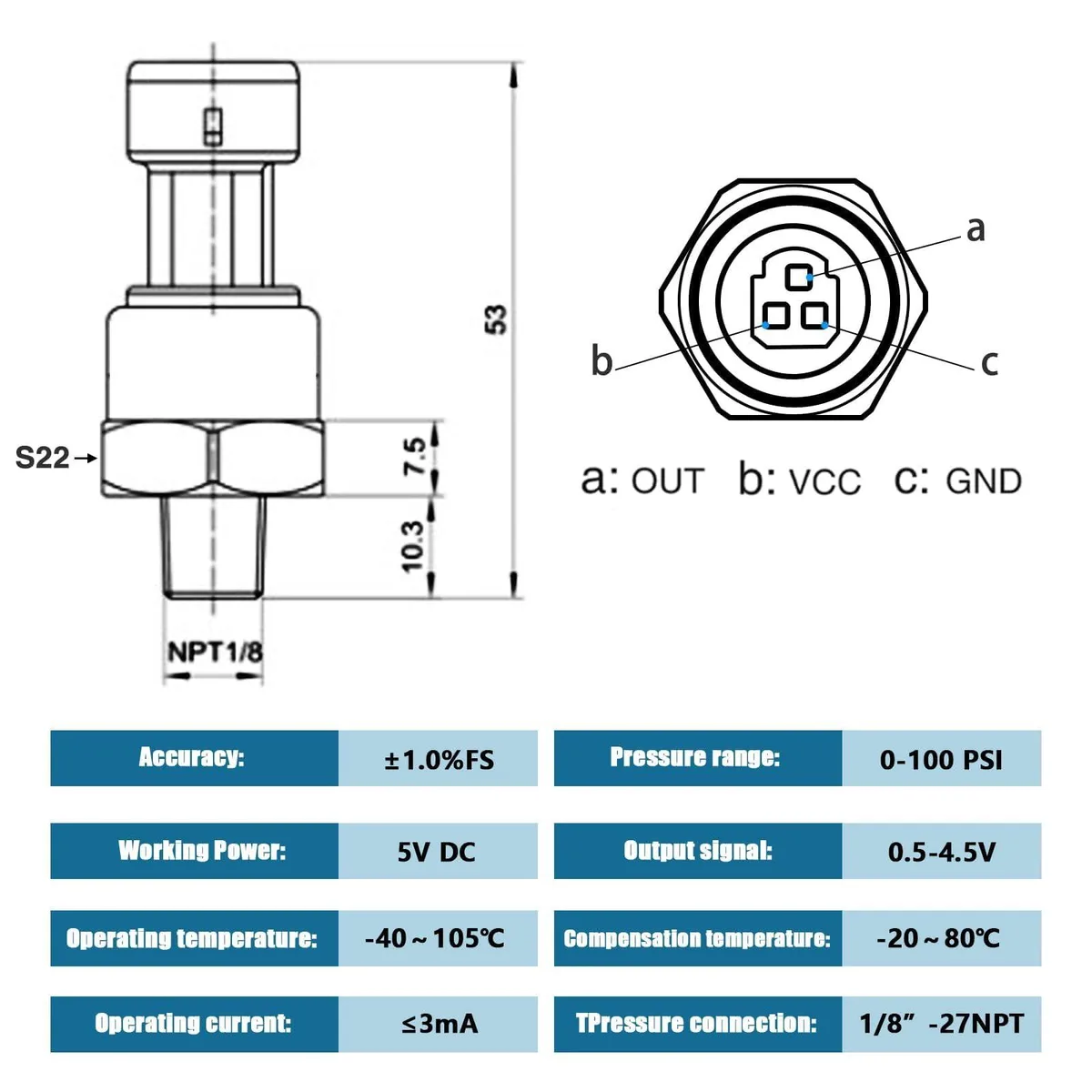

Verify that your port accepts a 1/8" - 27 NPT thread and that your system reads a 0.5V to 4.5V signal range supplied from a 5V DC source. Confirm the media is compatible with 316 stainless steel and ceramic wetted parts. The sensor draws roughly 3mA operating current.
For 100 PSI Monitoring Only
This transducer fits users who need a 0 to 100 PSI range with ±1.0% FS accuracy. It is not for buyers who require a higher range such as 150, 200, 300, 500 or 1000 PSI. It is also not for installations needing a different thread size, a different output signal type or a housing material other than 316 stainless steel.
Highlights
- Accurate readings with ±1.0% full-scale error across the range
- Linear 0.5 V to 4.5 V output simplifies data logging
- 316 stainless steel and ceramic construction resists corrosion and impact
- 1/8"-27 NPT thread fits standard oil, fuel, water and air ports
- Low 3 mA draw at 5 V DC eases integration into vehicle electrics
Specifications
No published specifications for this item yet.
Questions about this item
Does the 100 PSI transducer come with a connector harness or must I buy it separately?
The sensor includes a connector harness in the box so no separate cable purchase is required.
How do I choose between the 150, 200, 300, 500 and 1000 PSI versions listed?
Select the version whose pressure range covers your maximum expected pressure; this model is the 0-100 PSI variant.
What does the 0.5-4.5V output signal mean when the sensor is installed in my system?
At 0 psi the sensor outputs .5V, at 50 psi it outputs 2.5V and at 100 psi it outputs 4.5V, giving a linear voltage you can read directly.
